LED lights

2012 Triple Black lights
Setup I have on my 2012 R1200GS Triple Black driving /flood lights . I programmed 1 Autoswitch for the LED driving lights to operate on the 1 long pulse. I programmed another Autoswitch to operate the LED flood lights with the 2 quick pulse method. I used Bosch relays to control the lights. Both are wired into a "Fuzeblock". to trigger the Autoswitch I am using the the Turn signal cancel button with the leds indicators located beside the switch. The top LED indicates status of top lights, Bottom indicator bottom lights. They can be controlled totally independant of each other. I used a "Posi-lock" to tap into the blue w/white tracer wire located at the ignition in the right handlebar bundle.

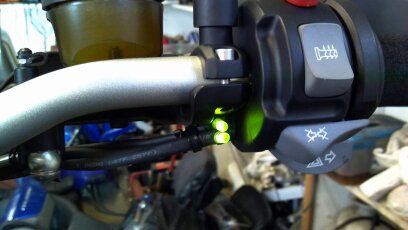

Upper lights on (hard to see in pic)top indicator green. Lower lights off red

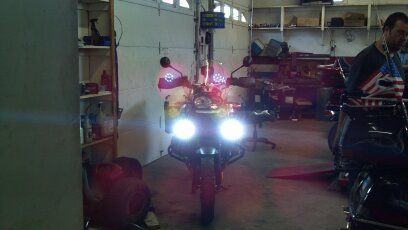

Both lights on.

Flood lights on

Driving lights on.


All lights on including HID low beam
10watt LED lights on top with driving light lens inserted.
27 watt lower flood lights
