/6 Clutch / Gearbox issue

I finally had a chance to go out for a Sunday morning ride with a friend today, and about 15 minutes into the ride, as I come around a corner out of an intersection, the bike shifts into second, and then stops shifting altogether. Can't downshift to get it into neutral, can't upshift into third. When I pull in the clutch lever, it disengages the gear.

I was able to jump start by coasting and popping the clutch, and limp home in second. Anyone have any ideas of what the issue might be, and how involved diving into it might be?

Thanks,

Gero
__________________
1974 R75/6
2002 Stumpjumper S-Works M5
2009 Kestrel Evoke SL
www.ars-natura.com
Ze Red Baron is offline   Reply With Quote
Old 06-13-2010, 06:25 AM   #2
Boon Booni
Red Clay Halo

Boon Booni's Avatar

Joined: Aug 2003
Location: Richmond, Va
Oddometer: 13,221
Quote:
Originally Posted by Ze Red Baron
I finally had a chance to go out for a Sunday morning ride with a friend today, and about 15 minutes into the ride, as I come around a corner out of an intersection, the bike shifts into second, and then stops shifting altogether. Can't downshift to get it into neutral, can't upshift into third. When I pull in the clutch lever, it disengages the gear.

I was able to jump start by coasting and popping the clutch, and limp home in second. Anyone have any ideas of what the issue might be, and how involved diving into it might be?

Thanks,

Gero
The issue is that you broke your clutch shifter pawl spring. Happened to me and left me in 2nd gear as well. "C" in the photo is the clutch shifter pawl, and there is a torsion spring that keeps it in contact with the big wheel with teeth on it.



Going to have to pull the transmission, and yank it apart to fix. Might as well install new bearings, seals, and maybe a shift kit while you're in there.

EDIT: And I see you have a '74 gearbox. The '74s are known for having some bad gear dogs on 3rd(?) gear that can break off and get chewed up in the system.

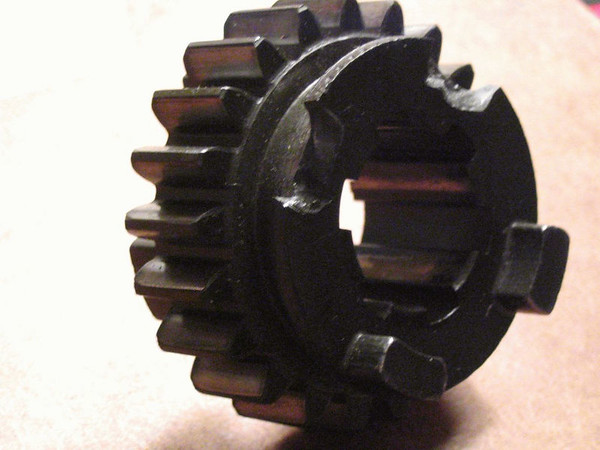

Here's what broken dogs looks like.



The two chunks missing from the top are the broken ones, the two intact ones are... well.. intact. So take a look while you're in there. That gear is from my box. The damage was noticed while we were in there for the pawl spring. I hadn't noticed any oddities about the box, but I went back and upended the oil catch container I'd been using for years and one of the dogs fell out. Don't know where or when the other broke off. Replaced the gear with one from another box.


You might want to look into a newer style gear box, either from a later/6 or a /7. The problem with the dogs was a one year only issue. I have a later model /6 gear box sitting in a corner waiting for the day when my gear finally grenades...
