Old 07-13-2010, 11:17 PM   #1846
knybanjo
kinda slow

knybanjo's Avatar

Joined: May 2006
Location: out in the clover patch
Oddometer: 22,885
Quote:
Originally Posted by Trust
fits '91? (Says 96-08...)
Yeah...I'm pretty sure that the counter shaft splines are the same.
__________________
knybanjo is offline   Reply With Quote
Old 07-14-2010, 11:40 AM   #1847
BigHerm
What Would Merle Do

BigHerm's Avatar

Joined: Jan 2009
Location: Chicago
Oddometer: 622
WTB mirrors

looking for mirrors. I need the right for sure but will buy a set. I assume the 96 and on will fit. Anyone need to clean out the garage????
__________________
07 V-Strom 1000
73 CB350 - (sold and bought back)
92 DR650 - kicker (sold), 05 Triumph Bonnie - Creamsicle (sold), 82 Suzuki GS 650L (sold), 80 PA50 - first set of motorized wheels (sold)
BigHerm is offline   Reply With Quote
Old 07-14-2010, 03:26 PM   #1848
tdrrally
Beastly Adventurer

tdrrally's Avatar

Joined: May 2008
Location: doing hard time in charleston,wv
Oddometer: 3,323
i will tell my set go for $50.00 shipped
__________________
2000 DRZ400e tagged
1980 TS125 project in the corner
tdrrally is offline   Reply With Quote
Old 07-14-2010, 03:27 PM   #1849
BigHerm
What Would Merle Do

BigHerm's Avatar

Joined: Jan 2009
Location: Chicago
Oddometer: 622
found what I need on CL in 5 min for 5.00. thanks for the offer though
__________________
07 V-Strom 1000
73 CB350 - (sold and bought back)
92 DR650 - kicker (sold), 05 Triumph Bonnie - Creamsicle (sold), 82 Suzuki GS 650L (sold), 80 PA50 - first set of motorized wheels (sold)
BigHerm is offline   Reply With Quote
Old 07-14-2010, 03:32 PM   #1850
tdrrally
Beastly Adventurer

tdrrally's Avatar

Joined: May 2008
Location: doing hard time in charleston,wv
Oddometer: 3,323
drat there goes my bar end mirrors

congrats
__________________
2000 DRZ400e tagged
1980 TS125 project in the corner
tdrrally is offline   Reply With Quote
Old 07-14-2010, 03:39 PM   #1851
BigHerm
What Would Merle Do

BigHerm's Avatar

Joined: Jan 2009
Location: Chicago
Oddometer: 622
pm braceface he has some to sell and he is too lazy to post them. Make him an offer
__________________
07 V-Strom 1000
73 CB350 - (sold and bought back)
92 DR650 - kicker (sold), 05 Triumph Bonnie - Creamsicle (sold), 82 Suzuki GS 650L (sold), 80 PA50 - first set of motorized wheels (sold)
BigHerm is offline   Reply With Quote
Old 07-15-2010, 07:43 AM   #1852
Gibbonboy
Just Plain Lost

Gibbonboy's Avatar

Joined: Oct 2008
Location: Suskyhanny County, PA
Oddometer: 212
Done (sorta)

I've been working on my 90 for a while, wanted to paint it and had an issue where it would quit in wet weather. Thanks to some folks on here, I tried several different things and the problem is gone. I bought the bike in Sep 08, rode it all over and was pretty happy with it. I'll list what I did to it, then some pics.

New fork seals (I was being a puss about this, making a mountain out of a molehill, took me maybe 30 minutes once I actually did it)

New plug boots, seals, etc.

Repacked/rebuilt the muffler, and lowered the mounting by 1 1/2". The side panel and rear fender were badly burnt and melted by the leaking can and the tip rotating and pointing directly at the fender.

Added a piece of metal on the rear fender where it melted, cut out the slotted area in the side panel, filled the hole with some mesh, and put a better heat shield inside the panel.

Cut a Thermarest Trail seat into the seat foam, added about 1 1/4" of foam on the sides, and recovered it. I screwed up my first attempt, but I'll ride it for a while to see if I want to make changes before I cover it again.

Removed the side stand switch.

Still to do:
Fab new windscreen, 1-2" taller.
Paint my rubbermaid top box and remount.
Make/buy a waterproof mount for my radio.
Same for GPS.

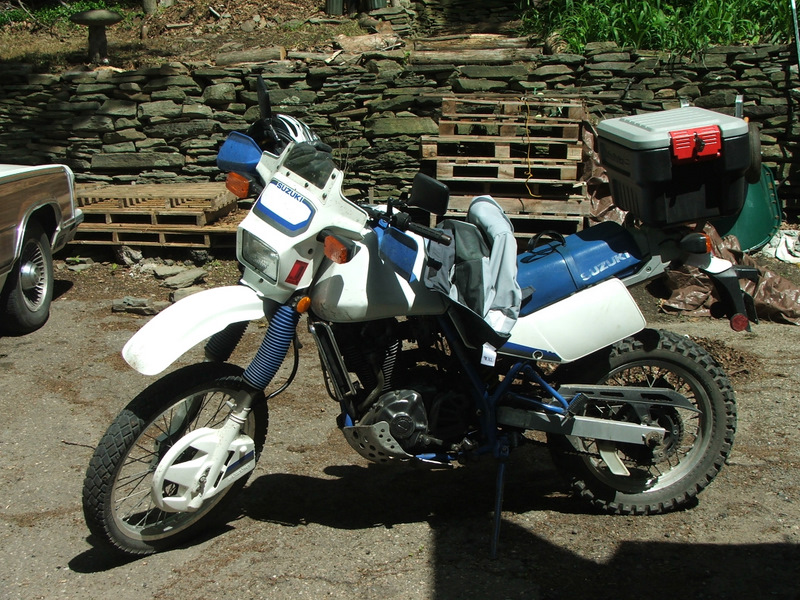

And some pics- what it looked like before I really started, I had stripped some of the decals off, especially the tank.

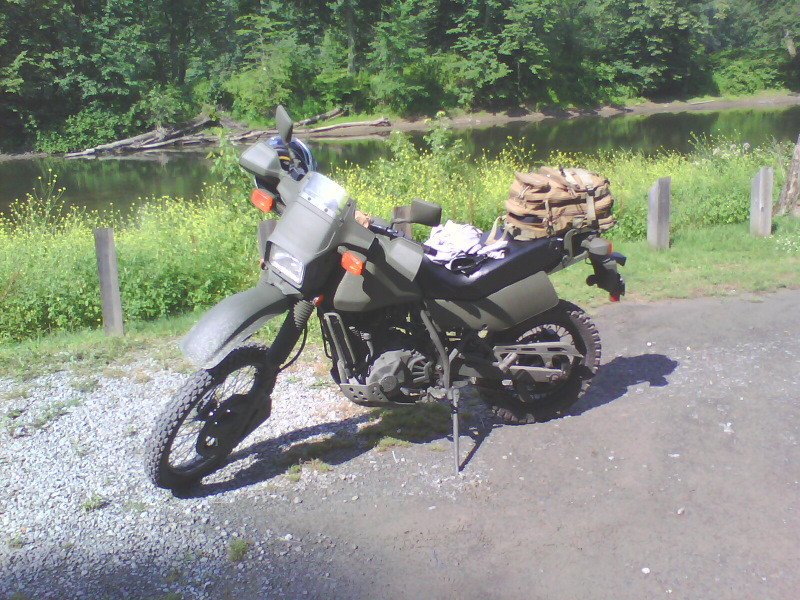

And now:

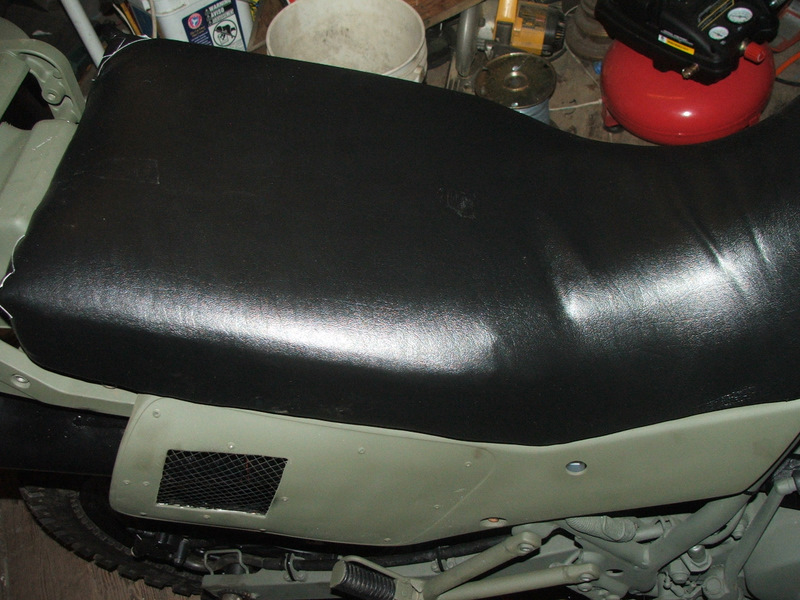

Closer shot of the seat and side panel:




Anyway, been riding it for a few days and I'm really tickled. Thanks to all who contribute to this thread, keeping a 20-year-old thumper running is a full-time job (at least it seems like it). I expect the paint to chip and scratch, but touchups are cheap.
__________________
1990 Suzuki DR 650S

The best way out is always through. -- Robert Frost

The greatest pleasure in life is doing what people say you cannot do. -- Walter Bagehot
Gibbonboy is offline   Reply With Quote
Old 07-15-2010, 08:28 AM   #1853
Bnd1t02
Adventurer

Joined: May 2010
Oddometer: 20
90-91' engine cases the same as 92-95'?

Hey guys,
Some of you are aware that I have been trying to sort out a motor mount
crack on my engine cases. The first question is wether the 90-91 inner engine cases are the same as the 92-95? The reason I ask this is cause 685 sent me the manuals and there was a seperate one for the 90-91's. I am still new to these bikes and are unaware of the differences.

My second question is if anyone has heard of torque related stress cracks on these motors? The very front motor mount hole under the oil return line
has a crack around the perimeter of the form on the case. There is no dents, scuffs, scratches or replaced parts leading me to beleive this bike has had any traumatic impacts anywhere near the motor. The welder that I had look at it said that he has seen some torque related cracks due to loosened motor mount bolts. Anyone here of this or experience this?

Jeremy
Bnd1t02 is offline   Reply With Quote
Old 07-15-2010, 09:09 AM   #1854
tdrrally
Beastly Adventurer

tdrrally's Avatar

Joined: May 2008
Location: doing hard time in charleston,wv
Oddometer: 3,323
i have heard the crank on the e-start bikes is longer
the case should be the same less the e-start mounts
i would say any non e-start engine would be the same
this would include the sp600 as well
__________________
2000 DRZ400e tagged
1980 TS125 project in the corner
tdrrally is offline   Reply With Quote
Old 07-18-2010, 08:23 AM   #1855
BigHerm
What Would Merle Do

BigHerm's Avatar

Joined: Jan 2009
Location: Chicago
Oddometer: 622
Trade/Selling my 92 DR650

http://advrider.com/forums/showthread.php?t=601135

thought I wuold let you know
__________________
07 V-Strom 1000
73 CB350 - (sold and bought back)
92 DR650 - kicker (sold), 05 Triumph Bonnie - Creamsicle (sold), 82 Suzuki GS 650L (sold), 80 PA50 - first set of motorized wheels (sold)
BigHerm is offline   Reply With Quote
Old 07-18-2010, 02:49 PM   #1856
685
Scarred Adventurer

685's Avatar

Joined: May 2009
Location: Tucson (east side) AZ
Oddometer: 992
Awol

I've been traveling. . .not in sunny hott Tucson anymore for a while, but in overcast cool Western Washington, hoping at least until mid October. I'll be working driving a semi with double trailers to central WA and the Skagit valley (north of Seattle) to pick up fresh corn or carrots for a frozen food plant here in Chehalis.

I brought the DR for my transportation--easier to trailer than a car--so it's my sole trans for the rest of the summer and into the mid autumn. It's a great bike, but is in it's 20th summer, so pray for me that it answers the call each day it's needed. Should be interesting if it needs something, my only other trans is a 28 foot motor home.

While at my brother's (he had steel and a oxyacetelene torch) I fabricated some very simple and light duty saddle bag racks and mounted a box on the luggage carrier. Gotta be careful about weight, but for groceries and protective clothing it all should be effective. The side boxes are Pelican 1550 cases, btw. The box is one of those stocking boxes that they use to stock health and beauty aids in Grocery stores. With a top that actually closes (unlike a milk crate.)







The only project on tap this summer is to get a new tube in the rear tire--the current one requires daily air checks.

My DR got dangerously low on oil--I got overly distracted by other things. Check that oil, you guys!
__________________
To post images. Go to http://postimage.org/ and do what they require. Copy it to clipboard (there's a box.) Paste the link (right click on the mouse, then left click 'Paste'.) Voila you got an image!
685 is offline   Reply With Quote
Old 07-18-2010, 02:53 PM   #1857
685
Scarred Adventurer

685's Avatar

Joined: May 2009
Location: Tucson (east side) AZ
Oddometer: 992
Quote:
Originally Posted by BigHerm
Nice bike--new tires? Good luck on finding it a new home.
__________________
To post images. Go to http://postimage.org/ and do what they require. Copy it to clipboard (there's a box.) Paste the link (right click on the mouse, then left click 'Paste'.) Voila you got an image!
685 is offline   Reply With Quote
Old 07-18-2010, 02:57 PM   #1858
BigHerm
What Would Merle Do

BigHerm's Avatar

Joined: Jan 2009
Location: Chicago
Oddometer: 622
Quote:
Originally Posted by 685
Nice bike--new tires? Good luck on finding it a new home.
300 miles
__________________
07 V-Strom 1000
73 CB350 - (sold and bought back)
92 DR650 - kicker (sold), 05 Triumph Bonnie - Creamsicle (sold), 82 Suzuki GS 650L (sold), 80 PA50 - first set of motorized wheels (sold)
BigHerm is offline   Reply With Quote
Old 07-18-2010, 11:26 PM   #1859
puntoMX
Lost in Cyberspace

puntoMX's Avatar

Joined: Sep 2008
Location: Santiago de Querétaro, Mexico
Oddometer: 398
Thumb

Part II on the KLR650 shock:



I just did it with a handdrill, starting will a small 1mm drill, followed by a 4mm drill, 7mm drill,
and finally a 9.9mm drill, I got it 0.5mm on the left side so I had to do it the same on the
other side, most won't even see it.



This is how it looks now, I could have cut the lower parts off but it doesn't border me to
have those holes there.



This is how the bikes looks now, the highest point at the back is now 101cm and seat height
at the lowest point is 87cm. Shock is now set at 3 for pre-load and the max for rebound,
I don't know what the KLR guys are complaining about but when that shock is lubricated and
NOT under load, it's easy to set the pre-load to a higher level (Design fault my ).
I also lowered the front by 12mm and see how that goes. I'm pooped, it's 01:26 AM .

Will post back tomorrow... well, later today.
__________________
Suzuki DR650 '92
[Mods to do] Luggage system w/ Pelican 1520 (Thanks to inmate 685), or softbags
[Mods in the make] Tool tube with tools
[Mods done] 1 1/8" handlebar - KLR650 Shock on DR650s - ZX-10R directionals on DR650s - RMZ450 muffler on DR650s - Acerbis Mollsoft taillight - Trailtech Vapor – Twin Air - Metzeler Tourance - Tusk sealsavers - more to come

puntoMX screwed with this post 07-18-2010 at 11:33 PM
puntoMX is offline   Reply With Quote
Old 07-19-2010, 01:15 AM   #1860
nikolic
Gnarly Adventurer

Joined: Apr 2007
Location: Serbia
Oddometer: 467
Quote:
Originally Posted by puntoMX
Part II on the KLR650 shock:



I just did it with a handdrill, starting will a small 1mm drill, followed by a 4mm drill, 7mm drill,
and finally a 9.9mm drill, I got it 0.5mm on the left side so I had to do it the same on the
other side, most won't even see it.



This is how it looks now, I could have cut the lower parts off but it doesn't border me to
have those holes there.



This is how the bikes looks now, the highest point at the back is now 101cm and seat height
at the lowest point is 87cm. Shock is now set at 3 for pre-load and the max for rebound,
I don't know what the KLR guys are complaining about but when that shock is lubricated and
NOT under load, it's easy to set the pre-load to a higher level (Design fault my ).
I also lowered the front by 12mm and see how that goes. I'm pooped, it's 01:26 AM .

Will post back tomorrow... well, later today.
I must admit I expected you will leave the seat hight over the 90! But anyway
nice job, for a good buck!
