Old 04-19-2011, 04:17 PM   #781
jdrocks OP
Gravel Runner

Joined: Jul 2007
Oddometer: 4,081
Quote:
Originally Posted by fatalerror View Post
I could use that on a DL1000 conversion I am contemplating...
yikes, a KLR rear fender on the front of a VStrom, what's the world coming to?

with the DL1000 wheel on the front this rat, there's not much mystery about what yours would look like.

i'll let ya know if i decide to make up a couple.
jdrocks is offline   Reply With Quote
Old 04-19-2011, 06:26 PM   #782
BuffWv
Beastly Adventurer

BuffWv's Avatar

Joined: Aug 2008
Location: Hills of central wv(Gassaway Wv)
Oddometer: 2,225
Tried out a set of 17in EX500 rims on the KLR today the front will have to go on backwards unless I can figure out how to turn the forks around and have the front brake hose to not kink. Go any hints
__________________
What seemed fast on a KLR is slow on a Versys
BuffWv is offline   Reply With Quote
Old 04-19-2011, 10:11 PM   #783
glitch_oz
Beastly Adventurer

glitch_oz's Avatar

Joined: Apr 2006
Location: AUS
Oddometer: 1,663
Quote:
Originally Posted by jdrocks View Post
yikes, a KLR rear fender on the front of a VStrom, what's the world coming to?
Right you are!!

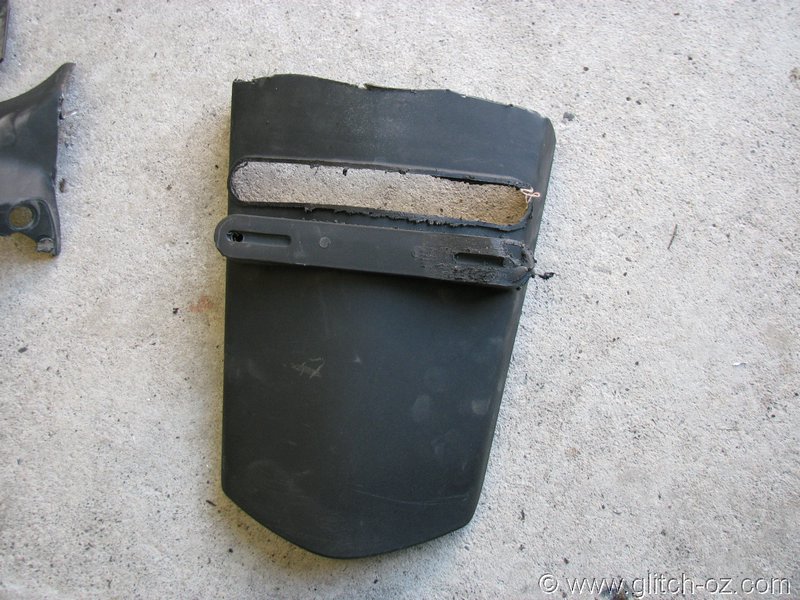

Here's a part of a Strom rear fender on the front of a......whatever.

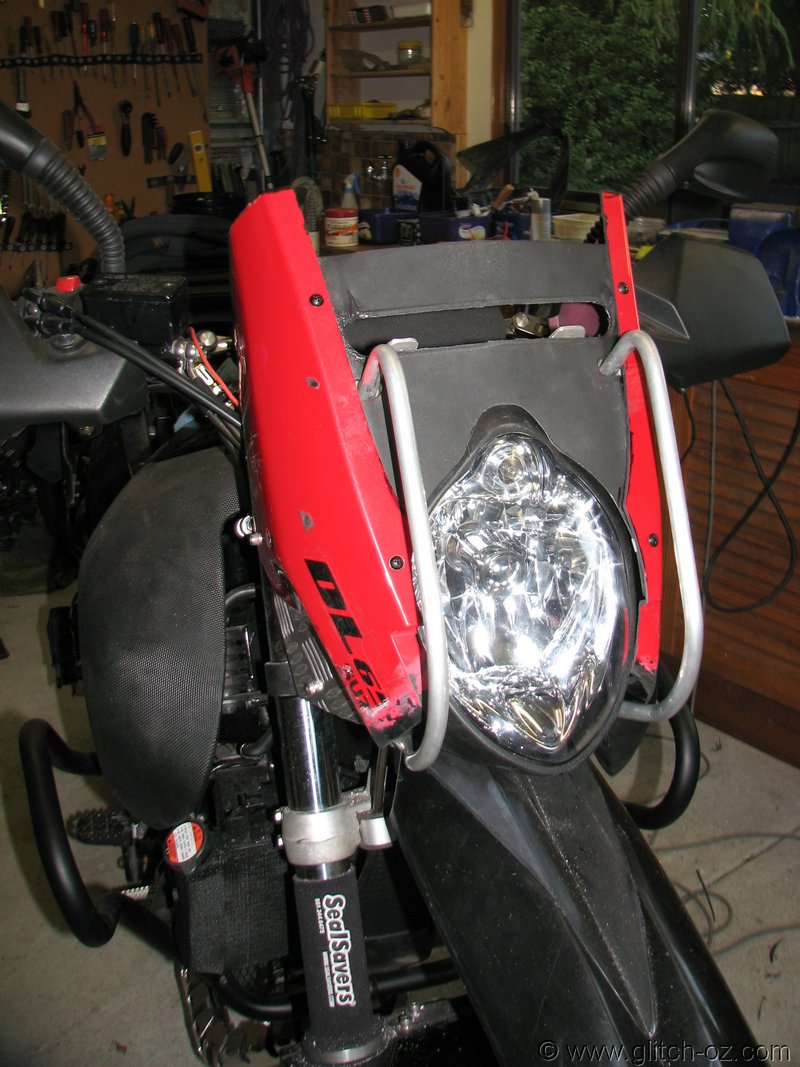

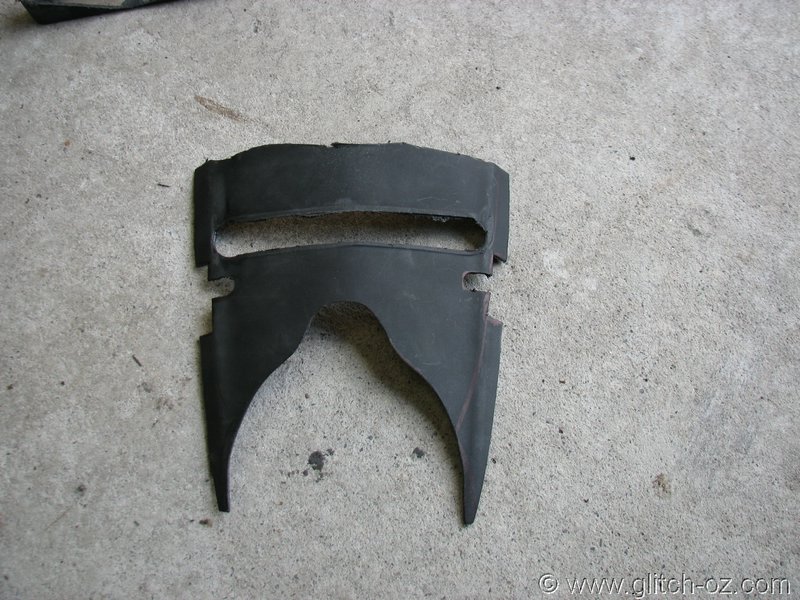

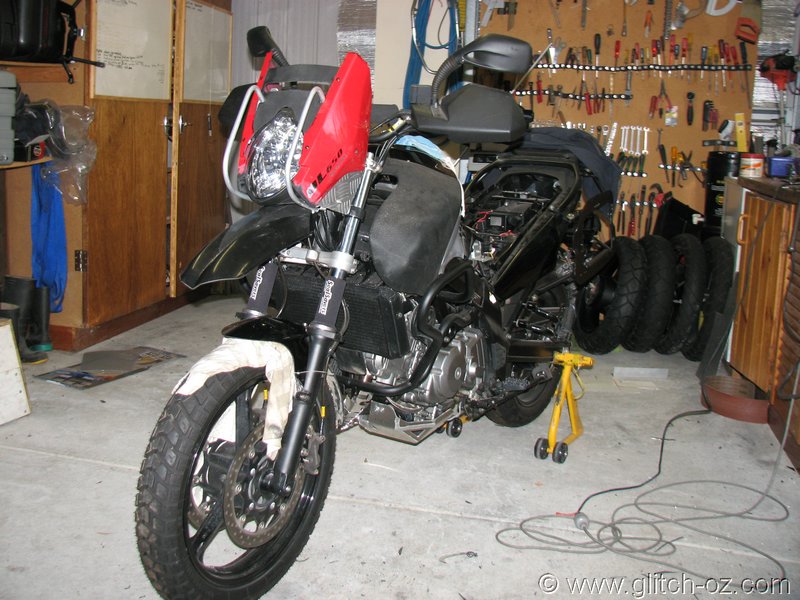

Gladius Headlight, modded KTM- high guard, cut-down and bi-sected OEM front guard mounted to forkbrace









With alum-mesh infill-cover....the mesh will be black in the end, like the checkerplate-cheeks.
Work in progress......s l o w progress, that is

Love your work, mate....AWESOME!!!
__________________
Cheers
pete

www.AusTouring.com
A Dozen Years Of Adventures

glitch_oz screwed with this post 04-19-2011 at 11:12 PM
glitch_oz is offline   Reply With Quote
Old 04-20-2011, 04:47 AM   #784
jdrocks OP
Gravel Runner

Joined: Jul 2007
Oddometer: 4,081
Quote:
Originally Posted by BuffWv View Post
Tried out a set of 17in EX500 rims on the KLR today the front will have to go on backwards unless I can figure out how to turn the forks around and have the front brake hose to not kink. Go any hints
last i heard, those wheels were destined for the ex250. you scrap that project and decide to motard a KLR instead? don't know what that wheel looks like exactly, but the rotor should be on the correct side, then it's just a bracket to make a caliper fit.
jdrocks is offline   Reply With Quote
Old 04-20-2011, 05:02 AM   #785
jdrocks OP
Gravel Runner

Joined: Jul 2007
Oddometer: 4,081
Quote:
Originally Posted by glitch_oz View Post
Right you are!!

Here's a part of a Strom rear fender on the front of a......whatever.
Gladius Headlight, modded KTM- high guard, cut-down and bi-sected OEM front guard mounted to forkbrace...
sometimes i think Oz must be the center of the universe for rat bike builds. you guys see a part and think "hmmm, i can make that work." high/low fender setup, we're thinking along the same lines.

what material is used to fab the "cheeks"?
jdrocks is offline   Reply With Quote
Old 04-20-2011, 08:53 AM   #786
BuffWv
Beastly Adventurer

BuffWv's Avatar

Joined: Aug 2008
Location: Hills of central wv(Gassaway Wv)
Oddometer: 2,225
Quote:
Originally Posted by jdrocks View Post
last i heard, those wheels were destined for the ex250. you scrap that project and decide to motard a KLR instead? don't know what that wheel looks like exactly, but the rotor should be on the correct side, then it's just a bracket to make a caliper fit.
Its on the wrong side. The ex500 wheels look good I may get the spacers made for Laural
__________________
What seemed fast on a KLR is slow on a Versys

BuffWv screwed with this post 04-20-2011 at 01:55 PM
BuffWv is offline   Reply With Quote
Old 04-20-2011, 04:40 PM   #787
glitch_oz
Beastly Adventurer

glitch_oz's Avatar

Joined: Apr 2006
Location: AUS
Oddometer: 1,663
Quote:
Originally Posted by jdrocks View Post
what material is used to fab the "cheeks"?
Underneath it's the OEM ABS- panels, cut'n shut muiltiple times and heat-moulded around the tank-cheeks.
Filled and smoothed with contact-glue bonded heat-mouldable EVA (the mid-sole material of your Nike's etc), finished off with a contact-glued marine-vinyl (diamond pattern, often showing up as c/f in photos).

2-2.5 full days of work in a pair.
__________________
Cheers
pete

www.AusTouring.com
A Dozen Years Of Adventures
glitch_oz is offline   Reply With Quote
Old 04-20-2011, 04:48 PM   #788
IndianJoe
Little Lebowski Achiever

IndianJoe's Avatar

Joined: Oct 2008
Location: PDX Oregon
Oddometer: 180
Quote:
Originally Posted by fredgreen View Post
For those not lucky enough to see this Beast in person, here is my wife beside it, she is 5'7"


That looks like serious fun. I love it.
__________________
I smell doughnuts.
IndianJoe is offline   Reply With Quote
Old 04-21-2011, 05:02 AM   #789
jdrocks OP
Gravel Runner

Joined: Jul 2007
Oddometer: 4,081
Quote:
Originally Posted by BuffWv View Post
Its on the wrong side. The ex500 wheels look good I may get the spacers made for Laural
wheels are one thing, but man, i'm not so sure about that caliper location. sorry to miss ya at LF, have a schedule conflict for that weekend.
jdrocks is offline   Reply With Quote
Old 04-21-2011, 05:11 AM   #790
jdrocks OP
Gravel Runner

Joined: Jul 2007
Oddometer: 4,081
Quote:
Originally Posted by glitch_oz View Post
Underneath it's the OEM ABS- panels, cut'n shut muiltiple times and heat-moulded around the tank-cheeks...
interesting approach, never seen that done before.
jdrocks is offline   Reply With Quote
Old 04-21-2011, 05:25 AM   #791
jdrocks OP
Gravel Runner

Joined: Jul 2007
Oddometer: 4,081
Quote:
Originally Posted by IndianJoe View Post
That looks like serious fun. I love it.
thanks, it is serious fun.

the gal in the photo is a rider and wanted to take the rat bike home with her, but claimed a different 650 from the fleet and took that one home instead...and now i understand that the hubby is cruising around on her new bike while making pretend check rides.
jdrocks is offline   Reply With Quote
Old 04-21-2011, 05:55 AM   #792
BuffWv
Beastly Adventurer

BuffWv's Avatar

Joined: Aug 2008
Location: Hills of central wv(Gassaway Wv)
Oddometer: 2,225
It just dawned on me that an inmate has a factory rear KLR rim only for sale on here I may check into it. The caliper does not fly with me either but man it handles the turn faster now I will get tired of it and change it later.
Just took another look and I will go without my speedo for now, going to swap the forks back around The gps will do for now...
__________________
What seemed fast on a KLR is slow on a Versys

BuffWv screwed with this post 04-21-2011 at 06:09 AM
BuffWv is offline   Reply With Quote
Old 04-21-2011, 06:45 AM   #793
fredgreen
Is it Spring yet?

fredgreen's Avatar

Joined: Jun 2009
Location: Bridgetown, Nova Scotia, Canada
Oddometer: 492
Quote:
Originally Posted by jdrocks View Post
thanks, it is serious fun.

the gal in the photo is a rider and wanted to take the rat bike home with her, but claimed a different 650 from the fleet and took that one home instead...and now i understand that the hubby is cruising around on her new bike while making pretend check rides.

You trying to bait me here JD. All I get to do to that bike is wrench it... no riding on it. We are going riding tomorrow, I'll post a pic later in the weekend.
fredgreen is offline   Reply With Quote
Old 04-22-2011, 05:23 AM   #794
jdrocks OP
Gravel Runner

Joined: Jul 2007
Oddometer: 4,081
Quote:
Originally Posted by fredgreen View Post
You trying to bait me here JD...
no riding, just wrenching, ok...it's just that the entire ADV universe is on the alert for unauthorized use of that bike.
jdrocks is offline   Reply With Quote
Old 04-22-2011, 11:24 AM   #795
BuffWv
Beastly Adventurer

BuffWv's Avatar

Joined: Aug 2008
Location: Hills of central wv(Gassaway Wv)
Oddometer: 2,225
Here ya go now if I can get the extra rear rim I will be set. My Garmin will have to do for now. Funds fell short on the Ninja
__________________
What seemed fast on a KLR is slow on a Versys
BuffWv is offline   Reply With Quote
