R60/6 Bing slide carb dismantle question

Carb cleaning day!

No problems, except I cannot figure out how to remove the insulating bushing (and washer beneath) at the head inlet side. Is it some kind of plastic or fiber? Any ideas for removing without destroying it and reusing it?


mattsz is offline   Reply With Quote
Old 08-10-2012, 05:01 PM   #2
JonnyCash
turd polisher

Joined: Jan 2011
Location: Midcoast, Maine
Oddometer: 1,401
Hi Matt. Have you tried a heat gun to expand the aluminum, or pot metal, or whatever the carb body is made of? If you don't have a heat gun, boiling water can work well too. I've never dealt with these.
__________________
I wouldn't bring her home to Mama, but Mama ain't home tonight.
JonnyCash is offline   Reply With Quote
Old 08-10-2012, 05:20 PM   #3
mattsz OP
moto-gurdyist

mattsz's Avatar

Joined: Jun 2012
Location: Coastal Maine
Oddometer: 132
No - Rusty at MAX said he basically never sells these things - people rebuilding carbs don't seem to need them. I took a chance and soaked them with the rest. We'll see what happens...
mattsz is offline   Reply With Quote
Old 08-11-2012, 04:09 AM   #4
mattsz OP
moto-gurdyist

mattsz's Avatar

Joined: Jun 2012
Location: Coastal Maine
Oddometer: 132
Re-mantle...

Any kind of lubrication required or suggested for any of these parts?



I'm guessing not (gas and most lubes don't mix!), but my old idle jet o-rings were toast, and I don't want to kill the new ones on reassembly...

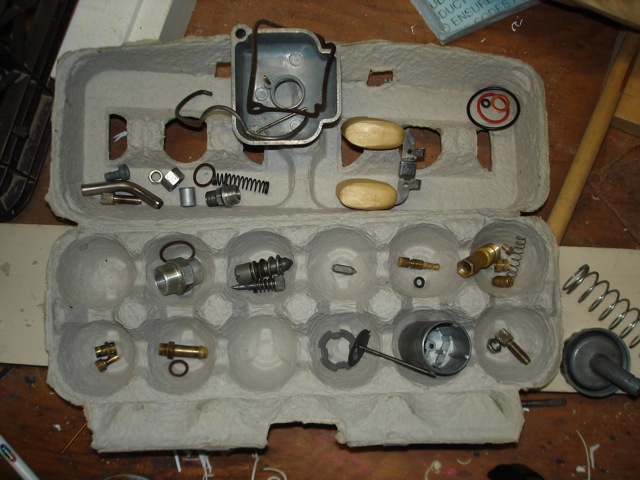

BTW, not the best photo, I know, but this is pre-soak...
mattsz is offline   Reply With Quote
Old 08-11-2012, 05:10 AM   #5
JonnyCash
turd polisher

Joined: Jan 2011
Location: Midcoast, Maine
Oddometer: 1,401
I like to use two-stroke oil, but I always have it around for the RD. I don't think it matters too much. Spit would be fine. Funny, I'm doing this same jobs too, on the Guzzi.
__________________
I wouldn't bring her home to Mama, but Mama ain't home tonight.
JonnyCash is offline   Reply With Quote
Old 08-11-2012, 05:30 AM   #6
mattsz OP
moto-gurdyist

mattsz's Avatar

Joined: Jun 2012
Location: Coastal Maine
Oddometer: 132
I can't wait to see that thing in action!!! Thanks again for your help...
mattsz is offline   Reply With Quote
Old 08-11-2012, 06:24 AM   #7
JonnyCash
turd polisher

Joined: Jan 2011
Location: Midcoast, Maine
Oddometer: 1,401
I enjoyed working with you, and I'm glad it helped. That's a super nice bike, you did very well.
__________________
I wouldn't bring her home to Mama, but Mama ain't home tonight.
JonnyCash is offline   Reply With Quote
Old 08-11-2012, 07:46 AM   #8
ignatz72
call me iggy

ignatz72's Avatar

Joined: Aug 2010
Location: Mid-South, M-town
Oddometer: 626
I've used plumbers grease, also called vacuum grease on the o-rings. These are clear silicone greases. A thin coating helps o-rings slide over jets, etc instead of tear on the threads. Others will probably mention using tape over the threads, and silicone grease will help here too.
__________________
Current: 93 R100GS, 03 XR650R
Prior: 73 CB350, 77 R100/7, 83 R100RT, 04 XR650L
I love every motorcycle I've owned and even some that I haven't.
ignatz72 is offline   Reply With Quote
Old 08-11-2012, 08:55 AM   #9
mattsz OP
moto-gurdyist

mattsz's Avatar

Joined: Jun 2012
Location: Coastal Maine
Oddometer: 132
Quote:
Originally Posted by ignatz72 View Post
I've used plumbers grease, also called vacuum grease on the o-rings. These are clear silicone greases. A thin coating helps o-rings slide over jets, etc instead of tear on the threads. Others will probably mention using tape over the threads, and silicone grease will help here too.
Hi Iggy-

Tape, as in plumbers teflon tape? Silicone grease on *all* threads, or just on those with o-rings?


Some other questions...


--- My Clymer manual says to remove the "plunger" from the accelerator pump housing, but doesn't say anything about dismantling it further. After cleaning, I noticed that it seemed to have some sort of check-valve function, so I looked into the Bing Carb booklet, which shows the "piston" as having a "valve" and a "reed". I removed the valve from the piston to find the reed inside - everything looked clean, so I buttoned them back up. Functionally, I find when I blow into one end, air flows freely, but when I reverse the flow, the reed "chirps" just a bit and *almost* seals, so I get just a small amount of flow. Each unit behaves the same way. Sound normal?



--- The springs from the accelerator pump "plunger" (Clymer) or "piston" (Bing) on each carb are different:



That's correct, the left side spring is broken! I didn't find any extra spring bits inside, and by the way the spring was gripping the end of the plunger/piston, I'd say that the last person to dig into these carbs stretched the spring and stuck it back in. I'm guessing that this should be replaced?

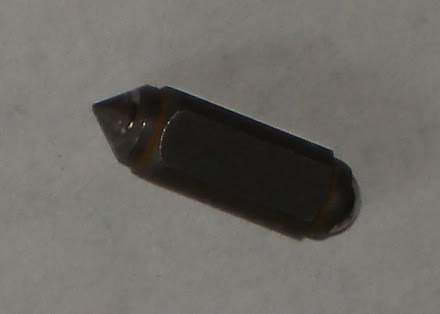

--- Finally, the float needles - they both seem to be just the same:



Where it seats is shiny, but it doesn't appear damaged or scored - to my eye, nor to my fingernail when I drag across it to feel for scoring - is that enough of a check?
mattsz is offline   Reply With Quote
Old 08-11-2012, 09:32 AM   #10
Bill Harris
Confirmed Curmudgeon

Bill Harris's Avatar

Joined: Sep 2008
Location: backwoods Alabama
Oddometer: 6,401
Quote:
Some other questions...

--- My Clymer manual says...
13 11 1 255 816 accelerator pump 50/5, 60/5-7 $ 58.00
__________________
'73 R60/5 Toaster
Luddite. Not just a philosophy, a way of life...
Bill Harris is offline   Reply With Quote
Old 08-11-2012, 09:32 AM   #11
ignatz72
call me iggy

ignatz72's Avatar

Joined: Aug 2010
Location: Mid-South, M-town
Oddometer: 626
Quote:
Originally Posted by mattsz View Post
Hi Iggy-

Tape, as in plumbers teflon tape? Silicone grease on *all* threads, or just on those with o-rings?
Tape, as in vinyl electrical tape or similar, which will be removed after the o-ring is seated. I don't think teflon tape is rated for gasoline, and you don't want it turning gunky inside your carbs. I have used teflon tape on the petcock threads and it seems to work fine, but I wouldn't use it inside my carbs.

And I used the silicone grease just on the o-rings themselves, although a bit on the threads probably wouldn't hurt. I would remove as much of the silicone as possible from the jet threads when you are done though.
__________________
Current: 93 R100GS, 03 XR650R
Prior: 73 CB350, 77 R100/7, 83 R100RT, 04 XR650L
I love every motorcycle I've owned and even some that I haven't.
ignatz72 is offline   Reply With Quote
Old 08-11-2012, 09:53 AM   #12
mattsz OP
moto-gurdyist

mattsz's Avatar

Joined: Jun 2012
Location: Coastal Maine
Oddometer: 132
Quote:
Originally Posted by Bill Harris View Post
13 11 1 255 816 accelerator pump 50/5, 60/5-7 $ 58.00
A whole new assembly just to replace that little spring? You're joking, right?

Why do I get the feeling you're not joking?



Quote:
Originally Posted by ignatz72 View Post
Tape, as in vinyl electrical tape or similar, which will be removed after the o-ring is seated. I don't think teflon tape is rated for gasoline, and you don't want it turning gunky inside your carbs. I have used teflon tape on the petcock threads and it seems to work fine, but I wouldn't use it inside my carbs.

And I used the silicone grease just on the o-rings themselves, although a bit on the threads probably wouldn't hurt. I would remove as much of the silicone as possible from the jet threads when you are done though.

Gotcha! I can manage that... Thanks!


I think I've got a $50 roll of electric tape around here somewhere (Bill was joking, right? sigh...).

Anybody have some Bing slide carbs they're parting out? Anyone? Anyone?
mattsz is offline   Reply With Quote
Old 08-11-2012, 12:45 PM   #13
Hedge36
Chasing parts.

Hedge36's Avatar

Joined: Nov 2003
Location: Anacortes, WA
Oddometer: 44,137
You know those little tubes of sewing machine oil with the needle tip? Those are great for carb reassembly
Hedge36 is offline   Reply With Quote
Old 08-11-2012, 12:59 PM   #14
mattsz OP
moto-gurdyist

mattsz's Avatar

Joined: Jun 2012
Location: Coastal Maine
Oddometer: 132
Just heard from Rusty at MAX. He stocks the springs - for $3.75!!

Any comments on my float needles or reed pistons? Think they're re-usable?

Forgive me, but I really don't know how most of these parts contribute to the job they do. Is it imperative that I replace that broken spring? What kinds of problems might I expect to experience with using that bad spring - one that I assume has more force due to its being stretched - fewer coils per the same length of spring.

I've been having a multitude of little problems, all diagnosed here on this forum as having numerous possible causes and solutions. Now, we're sort of looking at it from the other direction - here's a specific problem, what kind of symptoms would it cause?
mattsz is offline   Reply With Quote
Old 08-11-2012, 01:04 PM   #15
mattsz OP
moto-gurdyist

mattsz's Avatar

Joined: Jun 2012
Location: Coastal Maine
Oddometer: 132
Quote:
Originally Posted by Hedge36 View Post
You know those little tubes of sewing machine oil with the needle tip? Those are great for carb reassembly
Well, I have one of those, too!!!
