New and improved KTM690 WUNDERFEST

[crankshaft]

Originally Posted by motoged

Yep....and the technically adept guys even agree.....

But you can think whatever you want

Just asking a question, I don't spend hours and hours researching tires and specs I can tell you though, that twisting the throttle makes them disappear quicker and sitting on the couch makes them last forever

[jonnykilo]

Doing a teardown on my 08' 690 with 8000kms. Some wear on one of the cam lobes and roller. If I decide to replace the cam, anyone have anything to say about the do/don't get the KTM EVO II kit with the Rally Replica cam?

http://www.ktmtwins.com/ktm-690-endu...o-2-tuning-kit

[TheMuffinMan]

Anyone have the part number of the 2012 short oil filter? The one I got in the mail is different from the one I pulled out of the bike and want to make sure I have the correct one. I'll call the dealer$hip in the morning unless someone here knows.

Thanks!

[thorinoakenshield]

Originally Posted by TheMuffinMan

Anyone have the part number of the 2012 short oil filter? The one I got in the mail is different from the one I pulled out of the bike and want to make sure I have the correct one. I'll call the dealer$hip in the morning unless someone here knows.

Thanks!

75038046100

once again proving that everything can be found on youtube:

http://youtu.be/v8lbgUhjoSg

[TheMuffinMan]

Originally Posted by thorinoakenshield

75038046100

once again proving that everything can be found on youtube:

http://youtu.be/v8lbgUhjoSg

Hrm, ok the one I pulled out of the bike was 75038046101, thanks! 100 is what I was sent.

[The Letter J]

Originally Posted by jonnykilo

Doing a teardown on my 08' 690 with 8000kms. Some wear on one of the cam lobes and roller. If I decide to replace the cam, anyone have anything to say about the do/don't get the KTM EVO II kit with the Rally Replica cam?

http://www.ktmtwins.com/ktm-690-endu...o-2-tuning-kit

I have no firsthand experience with the RR cam but I decided against it for my own bike after reading that, while providing a noticeable boost in power up top, there was an equally noticeable loss in power down low. I haven't found any other commercially available cam's for the 690 yet but I haven't looked terribly hard either.

[Canadian_Bacon]

I've read that you can purchase/install an actual switch on the handlebars of a ktm 690 to change the throttle maps on the fly. Does this switch exist? If so where can I get one?

[Hoots]

Originally Posted by Canadian_Bacon

I've read that you can purchase/install an actual switch on the handlebars of a ktm 690 to change the throttle maps on the fly. Does this switch exist? If so where can I get one?

I had a nice Trail Tech switch on the Berg, but I don't think they make one for the 690 ...

[Bill the Bong]

Originally Posted by Canadian_Bacon

I've read that you can purchase/install an actual switch on the handlebars of a ktm 690 to change the throttle maps on the fly. Does this switch exist? If so where can I get one?

Leo Vince makes one, but its not on the fly. You still have to stop

[Bill the Bong]

Originally Posted by The Letter J

I have no firsthand experience with the RR cam but I decided against it for my own bike after reading that, while providing a noticeable boost in power up top, there was an equally noticeable loss in power down low. I haven't found any other commercially available cam's for the 690 yet but I haven't looked terribly hard either.

Maybe that is the answer for folks running slower throttle cams to tame down the initial delivery...

[Canadian_Bacon]

Originally Posted by Bill the Bong

Leo Vince makes one, but its not on the fly. You still have to stop

Do you have a link or something? I checked their site and couldn't find it.

[Bill the Bong]

http://www.advrider.com/forums/showthread.php?t=487552

[TheMuffinMan]

So I did the first valve check on my 2012 enduro with 624 miles on the clock. Fired right up, but there seemed to be more valve noise than usual, bike ran fine, warmed up. Changed the oil and the noise didn't subside. Took the skid plate off and it was still noisy.

My 950 has somewhat noisy valves, and my v-strom was noisy too. The 690 is the same noise but louder to the point where I'm a little worried (though it's a new bike so I'm kind of nit-picky ). Tore it down to the valves again and everything was at .13mm except one exhaust was .14mm . The bike had the same level of noisy valves after about 550 miles but they were all tight when I checked them and reshimmed them to .13mm but the noise persists.

I know these bikes are noisy but I looked more closely and saw some scoring marks on the rocker arm bearings, perhaps these marks are normal, and the noise is normal?

Here's a picture:

Larger Picture

[tattewell]

Im not sure if they fixed the rocker bearings, but mine let go on my 09 and ate the top end. If in doubt, swap em out!

[LukasM]

Originally Posted by The Letter J

I haven't found any other commercially available cam's for the 690 yet but I haven't looked terribly hard either.

Here you go, their stuff is normally very good quality as they only work with top manufacturers like CP etc.

http://www.gw-racing-parts.de/index2...is=2010&lan=en

Tuningkits

KTM 690 (2006-2010)

Product-Nr.	Product	Description	Picture	Retail € (without tax)

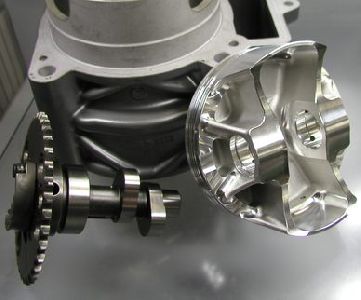

KTM690/06-09/ST1	Tuning-Kit 1	Tuningkit KTM690 stage 1. New Camshaft Stage 2. CP forged pistonkit of the extra class 102 mm. Compression 11,8 : 1. Delivery including the suitable piston rings, wrist pins and wire locks. Inclusive cylinder honing with diamond honing stones. Cylinder honing is necessary concerning the correct running clearance and the surface roughness adequately to the piston ring.		536,43
KTM690/06-09/ST2	Tuning-Kit 2	Tuningkit KTM690 stage 2. New Camshaft Stage 2. CP forged pistonkit of the extra class 102 mm. Compression 11,8 : 1. Delivery including the suitable piston rings, wrist pins and wire locks. Inclusive cylinder honing with diamond honing stones. Cylinder honing is necessary concerning the correct running clearance and the surface roughness adequately to the piston ring. Cylinder head porting inclusive radius valve seat cutting. Inclusive shot peen of the combustion chamber and channels.		665,71
KTM690/06-09/ST3	Tuning-Kit 3	Tuningkit KTM690 stage 3. New Camshaft Stage 2. CP forged pistonkit of the extra class 102 mm. Compression 11,8 : 1. Delivery including the suitable piston rings, wrist pins and wire locks. Inclusive cylinder honing with diamond honing stones. Cylinder honing is necessary concerning the correct running clearance and the surface roughness adequately to the piston ring. Cylinder head porting inclusive radius valve seat cutting. Inclusive shot peen of the combustion chamber and channels. Including crankshaft balancing.		789,86

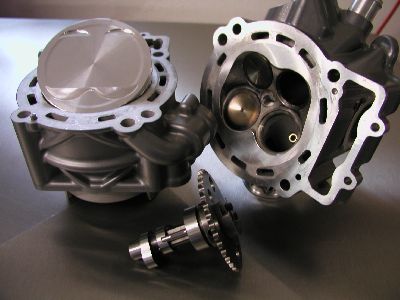

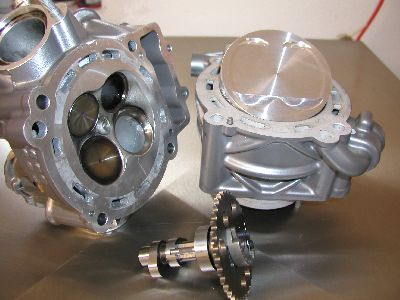

KTM690/06-09/ST4	Tuning-Kit 4	KTM 690 bigbore - tuningkit. New camshaft stage 2. Cylinder boring for 104 mm and new LFC plating. CP forged pistonkit of the extra class 104,00 mm, + 2 mm oversize, compression 12,5 : 1. Delivery including the suitable piston rings, wrist pins and wire locks.Cylinder head porting inclusive radius valve seat cutting. Inclusive shot peen of the combustion chamber and channels. Including crankshaft balancing.		1090,47

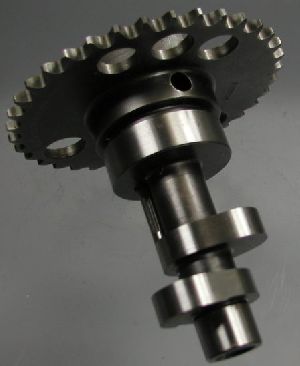

NKTM690/06-10/ST2	Camshaft	New camshaft stage 2! More top end power ! Very good for bigbore engines.		292,86

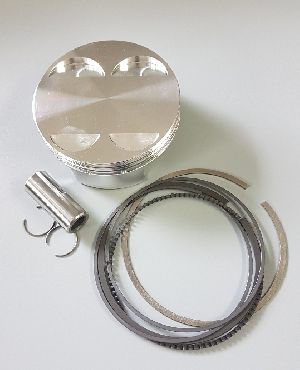

PCPKTM690/06-09/102m	Piston	CP pistonkit of the extra class 102,03 mm. Compression 11,8:1. The cylinder must be honed with diamond honing stones. Cylinder honing is necessary due to the fact that the piston especially for the overhaul has a slightly oversize of 0,03 mm.		220,00
PCPKTM690/06-09/104m	Piston	CP - Forged Pistonkit of the extra class 104,00 mm, + 2 mm oversize, compression: 12,5 : 1,. Delivery including the suitable piston - rings, wrist pins and wire locks. The cylinder must be bored for oversize and new coated.		220,00
KTM690-HSC3	Piston coating	HSC3 piston coating		40,86
