Old 07-05-2008, 08:51 AM   #1411
Fubars
What would Scoobydo?

Fubars's Avatar

Joined: Aug 2003
Location: Ventuna, California
Oddometer: 1,729
Send the stock seat to these guys

http://www.renazco.com/

They really are The Best.

Then sell the Corbin.
Fubars is offline   Reply With Quote
Old 07-07-2008, 08:46 AM   #1412
E-Bum
Studly Adventurer

E-Bum's Avatar

Joined: May 2008
Location: Portland, OR
Oddometer: 688
I fell in love with Elefants the moment I laid eyes upon them.

But one quick question I can't seem to find the answer to. How is the gas mileage on these '94 E900's? And how many total were brought to the US?
E-Bum is offline   Reply With Quote
Old 07-07-2008, 09:06 PM   #1413
Donkey Hotey
De Jo Momma

Donkey Hotey's Avatar

Joined: Aug 2005
Location: 20 Mule Team Trail (Palmdale, Ca)
Oddometer: 10,804
Quote:
Originally Posted by E-Bum
But one quick question I can't seem to find the answer to. How is the gas mileage on these '94 E900's? And how many total were brought to the US?
Mileage varies by rider. One of my KTMs belonged to a friend. He got 60 MPG, I only got 50.

With that out of the way, my 900 'fant doesn't get anything very different than any of my other bikes--mid 40s on average.

No firm import numbers that I know of but the rumor is 100 bikes per year (94, 95).
Donkey Hotey is offline   Reply With Quote
Old 07-08-2008, 07:00 AM   #1414
Lamin Sambou
Lamin

Joined: Dec 2006
Location: UK
Oddometer: 95
Elefant 900 rear Suspension linkage

Hi All,

Any of you chaps greased up or replaced the bearings on the rear suspension linkage?

Where the bottom link pivots on the frame, the bearing sits on a hollow shaft that is srcewed into the frame, anyone got any tips on getting this undone? I've made a tool but it still won't budge.

cheers

AndyP

http://picasaweb.google.com/andypackham

Bike magazine Tire test on above link
Lamin Sambou is offline   Reply With Quote
Old 07-14-2008, 06:39 AM   #1415
Lamin Sambou
Lamin

Joined: Dec 2006
Location: UK
Oddometer: 95
Elefant with no nipples

thats no nipples on rear suspension linkage


Any of you chaps greased up or replaced the bearings on the rear suspension linkage?

Where the bottom link pivots on the frame, the bearing sits on a hollow shaft that is srcewed into the frame, anyone got any tips on getting this undone? I've made a tool but it still won't budge.

cheers

AndyP



Lamin Sambou is offline   Reply With Quote
Old 07-14-2008, 09:28 AM   #1416
Glenn_G
Adventurer

Joined: Aug 2005
Location: MK, UK
Oddometer: 91
Hi Andy,

'I've made a tool but it still won't budge.'
What tool did you make up - is it the different sized diameter 'drift' in the bottom pic, resting on the block of wood?

If lots of wd40 soaking, heat and cold, big hammers dont shift it in the past I've managed to make up a 'puller' for this kind of thing ie use some threaded bar/stud bar (M8 or M10?) pass it through the hole and tighten a pair of nuts together to lock them at one end, then place a suitable tube(deep reach spark plug spanner?) & washers at one end to allow the spacer to come out, at the other end place a washer just big enough to 'cover' the spacer diameter and then put on a nut, do up tight, then when you turn the single nut it should force only the spacer through and into the space created by the tube/spark plug spanner .... does that make sense?


_
Glenn_G is offline   Reply With Quote
Old 07-14-2008, 03:28 PM   #1417
Lamin Sambou
Lamin

Joined: Dec 2006
Location: UK
Oddometer: 95
Elefant rear suspension link

Quote:
Originally Posted by Glenn_G
Hi Andy,

'I've made a tool but it still won't budge.'
What tool did you make up - is it the different sized diameter 'drift' in the bottom pic, resting on the block of wood?

If lots of wd40 soaking, heat and cold, big hammers dont shift it in the past I've managed to make up a 'puller' for this kind of thing ie use some threaded bar/stud bar (M8 or M10?) pass it through the hole and tighten a pair of nuts together to lock them at one end, then place a suitable tube(deep reach spark plug spanner?) & washers at one end to allow the spacer to come out, at the other end place a washer just big enough to 'cover' the spacer diameter and then put on a nut, do up tight, then when you turn the single nut it should force only the spacer through and into the space created by the tube/spark plug spanner .... does that make sense?


_
Hi Glen,

thanks for your reply, the tool you refer to in the picture is the end of an angle wrench not the tool I made.

This bush/hollow shaft actually screws into 1 side of the frame. probably went in nice and easy 14 years ago at the factory. there are two slots to enable undoing.

any ideas

cheers
andyP

Lamin Sambou is offline   Reply With Quote
Old 07-14-2008, 03:52 PM   #1418
christian
Exchange your GPS Track!

christian's Avatar

Joined: Jul 2004
Location: Redwood City, CA
Oddometer: 2,618
Quote:
Originally Posted by Lamin Sambou

well I haven't tried yet, but I have this tool from motion pro,
http://www.motionpro.com/motorcycle/...g_plug_wrench/

seems to be a tight reach, but I'll try it if it fits and I can turn it a little.
__________________
KTM 950 ADV '05.5
KTM 690 '10
christian is offline   Reply With Quote
Old 07-14-2008, 04:34 PM   #1419
Lamin Sambou
Lamin

Joined: Dec 2006
Location: UK
Oddometer: 95
Quote:
Originally Posted by christian
well I haven't tried yet, but I have this tool from motion pro,
http://www.motionpro.com/motorcycle/...g_plug_wrench/

seems to be a tight reach, but I'll try it if it fits and I can turn it a little.
Hi Christian, I think you 'd be better off with a drag link socket . you want one 20mm wide. even if it fits you've still got to get the bastard to turn.....

cheers
andyp
Lamin Sambou is offline   Reply With Quote
Old 07-15-2008, 08:14 AM   #1420
Glenn_G
Adventurer

Joined: Aug 2005
Location: MK, UK
Oddometer: 91
'This bush/hollow shaft actually screws into 1 side of the frame. probably went in nice and easy 14 years ago at the factory. there are two slots to enable undoing. '

Ah I see ... strange arrangement. Well in that case have you tried an air gun/compressor and your 'tool' - its amazing how much easier using airguns are for removing/undoing nuts, bolts, etc or are the two 'slots' too shallow to allow your 'tool' to enagage with? ie does it just spin without engageing in the slots.

If thats no good, you know whats next ? big hammer and a cold chisel !

Its not pretty but I've not have them let me down yet
Glenn_G is offline   Reply With Quote
Old 07-16-2008, 06:11 AM   #1421
Willis24
Gnarly Adventurer

Willis24's Avatar

Joined: Nov 2007
Location: Kansas City, MO. USA
Oddometer: 335
Quote:
Originally Posted by Lamin Sambou
anyone got any tips on getting this undone? I've made a tool but it still won't budge.
Credit for this goes to flash_412 from the Yahoo Gran Canyon group. The picture of the tool is for the GC which I believe is the same as the E.
Attached Images

__________________
2000 Cagiva Gran Canyon
Willis24 is offline   Reply With Quote
Old 07-16-2008, 06:12 AM   #1422
Willis24
Gnarly Adventurer

Willis24's Avatar

Joined: Nov 2007
Location: Kansas City, MO. USA
Oddometer: 335
Another shot
Attached Images

__________________
2000 Cagiva Gran Canyon
Willis24 is offline   Reply With Quote
Old 07-16-2008, 10:40 AM   #1423
christian
Exchange your GPS Track!

christian's Avatar

Joined: Jul 2004
Location: Redwood City, CA
Oddometer: 2,618
Quote:
Originally Posted by Willis24
Credit for this goes to flash_412 from the Yahoo Gran Canyon group. The picture of the tool is for the GC which I believe is the same as the E.
that's outstanding, so the questions
1- is this a "traveling tool"
2- if not, is it a Cagiva tool or a home made one?
3- if home made, anybody interrested in getting together to have one build and be a traveling tool in the ADVRider Tool pool ? If that the solution, I could drop off my bike at a machinist I know so he can make one.

thanks
Christian
__________________
KTM 950 ADV '05.5
KTM 690 '10
christian is offline   Reply With Quote
Old 07-16-2008, 12:12 PM   #1424
Durangoman
Yeah its me!

Durangoman's Avatar

Joined: Feb 2006
Location: Durango
Oddometer: 773

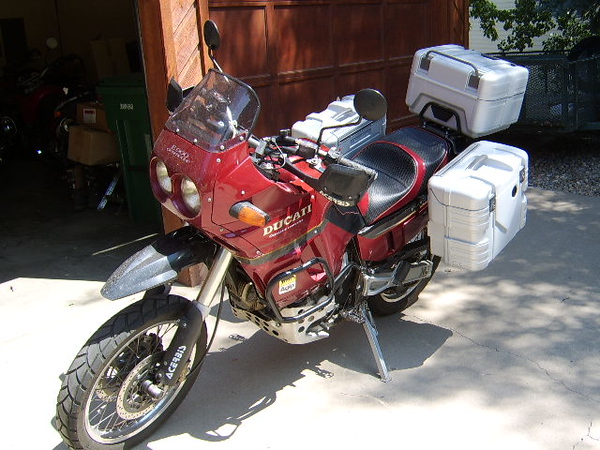

Got the H&B crash guards and luggage installed. New Corbin and Anakees


Durangoman is offline   Reply With Quote
Old 07-16-2008, 12:14 PM   #1425
christian
Exchange your GPS Track!

christian's Avatar

Joined: Jul 2004
Location: Redwood City, CA
Oddometer: 2,618
Quote:
Originally Posted by Durangoman
Got the H&B crash guards and luggage installed. New Corbin and Anakees


can you take a close up picture of the lower end of the forks where these Acerbis fork guard are installed ?
thanks
__________________
KTM 950 ADV '05.5
KTM 690 '10
christian is offline   Reply With Quote
