Old 01-16-2009, 04:14 PM   #751
gsweave
Yinz, blinkers are on.

Joined: Apr 2005
Location: The Paris of Appalachia
Oddometer: 11,323
Quote:
Originally Posted by WIsixfitty
^^^^^^
ummm, forgive my ignorance, but is that rod above for stick welding?

:)

Yep stick.
__________________
1Paul 2:15
For it is God's will that by doing good you should silence the ignorant talk of foolish men. 16 Live as free men, but do not use your freedom as a cover-up for evil;... .
gsweave is offline   Reply With Quote
Old 01-17-2009, 12:55 AM   #752
WIsixfitty
ceiling unlimited

Joined: Aug 2006
Location: west of road america
Oddometer: 2,126
Quote:
Originally Posted by gsweave
Yep stick.
OK, that makes sense then.


All of my reply suggestions were using tig.
__________________
sideways and smiling
WIsixfitty is offline   Reply With Quote
Old 01-17-2009, 06:52 AM   #753
bosco
Raybanned

bosco's Avatar

Joined: Jul 2005
Location: Atop the Bakken
Oddometer: 11,643
Quote:
Originally Posted by WIsixfitty
assuming a .125" wall thickness I agree with gsweave on amperage. Just don't camp out in one area too long.

I dunno but using a 316 rod seems like a reasonable idea too. I do not know anything about what rod gsweave recommended. 308L will also work just fine.

In terms of host material I guess if ya got 316 laying around, use it, but 304 is a much nicer/cost effective altrenative.

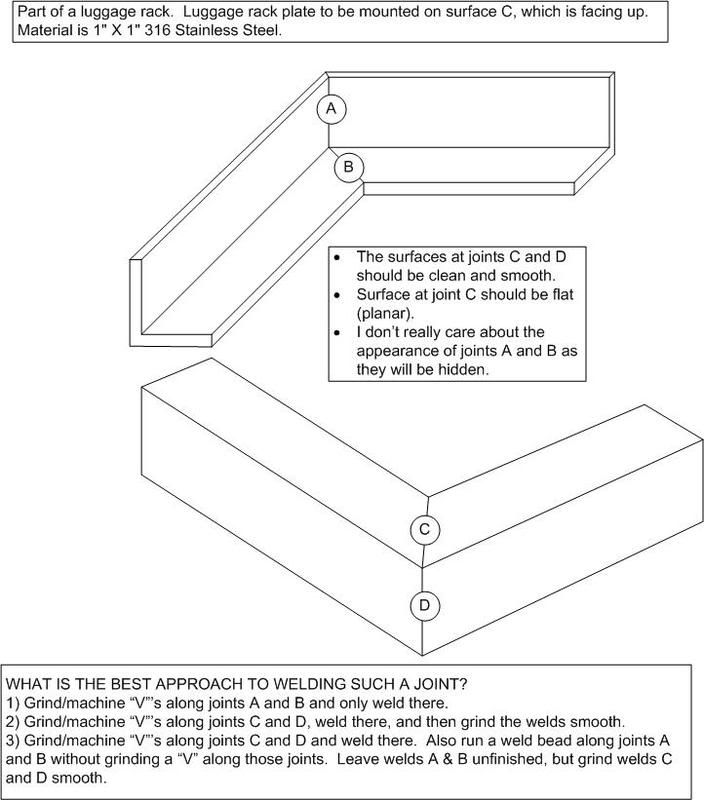

I would also chamfer or bevel B and C if you will be grinding weld smooth.

Just fuse (no filler) D.

Put a nice weave/fillet in A.

Once welded, take a dead blow hammer to true up. Stanley's steel like to move alot.



I am curious why you would miter the corners rather than cope them? Isn't a coping a stronger joint?
__________________
___________________________________
"It's called the American Dream - because you have to be asleep to believe it." -George Carlin
bosco is offline   Reply With Quote
Old 01-17-2009, 10:03 AM   #754
WIsixfitty
ceiling unlimited

Joined: Aug 2006
Location: west of road america
Oddometer: 2,126
Quote:
Originally Posted by bosco
I am curious why you would miter the corners rather than cope them? Isn't a coping a stronger joint?

How do you cope angle "iron"? Notch out one horizontal flat and the other vertical flat?

I only cope when using a round or enclosed tube when it has to join up other than a butt joint.

Miter seems the easiest with imo more than enough strength for the application.
__________________
sideways and smiling
WIsixfitty is offline   Reply With Quote
Old 01-17-2009, 10:30 AM   #755
gsweave
Yinz, blinkers are on.

Joined: Apr 2005
Location: The Paris of Appalachia
Oddometer: 11,323
Quote:
Originally Posted by WIsixfitty
OK, that makes sense then.


All of my reply suggestions were using tig.

Few of us are blessed with a buzz box at home let alone a TIG.


I figured he has a AC buzz box avail.

Here is a sample piece that I spent 5 min on, just butt welded.

2100 Blue Max rod at 120 amps 304L work piece. No clean up or dressing aside from slag chipping.

I should have moved just a bit faster.




See how flat the 2100 lays. small amount of grinding to finish off.
__________________
1Paul 2:15
For it is God's will that by doing good you should silence the ignorant talk of foolish men. 16 Live as free men, but do not use your freedom as a cover-up for evil;... .

gsweave screwed with this post 01-17-2009 at 10:43 AM
gsweave is offline   Reply With Quote
Old 01-17-2009, 10:34 AM   #756
bosco
Raybanned

bosco's Avatar

Joined: Jul 2005
Location: Atop the Bakken
Oddometer: 11,643
Quote:
Originally Posted by WIsixfitty
How do you cope angle "iron"? Notch out one horizontal flat and the other vertical flat?

I only cope when using a round or enclosed tube when it has to join up other than a butt joint.

Miter seems the easiest with imo more than enough strength for the application.
I tried to find an image w/out luck. Basically you leave one piece intact and cut the other to fit so that coner to corner weld includes both the corner and the flange. (okay some my discription sucks, too ). Anyway, you're probabley right in that a miter is strong enough and certainly easier.
__________________
___________________________________
"It's called the American Dream - because you have to be asleep to believe it." -George Carlin
bosco is offline   Reply With Quote
Old 01-17-2009, 10:55 AM   #757
gsweave
Yinz, blinkers are on.

Joined: Apr 2005
Location: The Paris of Appalachia
Oddometer: 11,323
Quote:
Originally Posted by bosco
I tried to find an image w/out luck. Basically you leave one piece intact and cut the other to fit so that coner to corner weld includes both the corner and the flange. (okay some my discription sucks, too ). Anyway, you're probabley right in that a miter is strong enough and certainly easier.

We normally cope the corners. But we are building for ease and speed, strength. Notch one flat, butt other two flanges.

Mitered is prettier
__________________
1Paul 2:15
For it is God's will that by doing good you should silence the ignorant talk of foolish men. 16 Live as free men, but do not use your freedom as a cover-up for evil;... .
gsweave is offline   Reply With Quote
Old 01-17-2009, 11:36 AM   #758
WIsixfitty
ceiling unlimited

Joined: Aug 2006
Location: west of road america
Oddometer: 2,126
Quote:
Originally Posted by gsweave
Few of us are blessed with a buzz box at home let alone a TIG.


I figured he has a AC buzz box avail.

Here is a sample piece that I spent 5 min on, just butt welded.

2100 Blue Max rod at 120 amps 304L work piece. No clean up or dressing aside from slag chipping.

I should have moved just a bit faster.




See how flat the 2100 lays. small amount of grinding to finish off.

That's pretty damn nice for a stick. I've done almost zero "dick" (stick) welding. Mine would not look like that. However with a tig...

With .125 wall and tig I'd back the amperage down a bit. 90 - 100 should more than sufficient .
__________________
sideways and smiling
WIsixfitty is offline   Reply With Quote
Old 01-17-2009, 11:56 AM   #759
gsweave
Yinz, blinkers are on.

Joined: Apr 2005
Location: The Paris of Appalachia
Oddometer: 11,323
Quote:
Originally Posted by WIsixfitty
That's pretty damn nice for a stick. I've done almost zero "dick" (stick) welding. Mine would not look like that. However with a tig...

It's not often that I can take the workpiece to our TIG or MIG setups.

So we take the DC stick welders to the workpiece
__________________
1Paul 2:15
For it is God's will that by doing good you should silence the ignorant talk of foolish men. 16 Live as free men, but do not use your freedom as a cover-up for evil;... .
gsweave is offline   Reply With Quote
Old 01-18-2009, 10:42 PM   #760
Skippii
Hookers, my lad.

Skippii's Avatar

Joined: May 2008
Location: Richmond, Va
Oddometer: 6,506
What stick do you use to weld copper pipes?

I found a site online that says to use 1851 in DC EP only..
I can't find any other info on this mysterius 1851 rod.
Also, I don't have a DC welder, but the same site also says to only use DC only for 6013 and 7014, which works just fine on my AC welder.

I can't find any other info on stick welding copper. Why is this? Is it because brazing is the preferred method?
__________________
"Umm be careful what you say, this is Skippii....
You may get it delivered in the form of a shake or some interperative dance routine that involves nakedness, pizza and a stuffed raccoon..." -DCrider
Skippii is offline   Reply With Quote
Old 01-30-2009, 05:27 PM   #761
St_rydr
Strider

St_rydr's Avatar

Joined: Jan 2007
Location: Janesville, Wisconsin
Oddometer: 5,530
Quote:
Originally Posted by Skippii
What stick do you use to weld copper pipes?

I found a site online that says to use 1851 in DC EP only..
I can't find any other info on this mysterius 1851 rod.
Also, I don't have a DC welder, but the same site also says to only use DC only for 6013 and 7014, which works just fine on my AC welder.

I can't find any other info on stick welding copper. Why is this? Is it because brazing is the preferred method?
Why arc weld? Good question. I gas weld or braze copper for refrigeration. Seems to be very reliable but there is some newer soldering techniques that are working too.
__________________
"Only a rider knows how much a fellow rider suffers in the winter." - Rob1313

Try Smug Mug!
St_rydr is offline   Reply With Quote
Old 01-30-2009, 09:16 PM   #762
grizzzly
The Pre-Banned Version

grizzzly's Avatar

Joined: Apr 2007
Location: socorro NM 505-five five zero-2583
Oddometer: 3,268
Quote:
Originally Posted by Skippii
What stick do you use to weld copper pipes?

I found a site online that says to use 1851 in DC EP only..
I can't find any other info on this mysterius 1851 rod.
Also, I don't have a DC welder, but the same site also says to only use DC only for 6013 and 7014, which works just fine on my AC welder.

I can't find any other info on stick welding copper. Why is this? Is it because brazing is the preferred method?
It can be done but when welding copper as it solidifies it becomes very brittle and cracks
__________________
you actually expect people to take responsibility for their actions in today's society?!

grizzzly is offline   Reply With Quote
Old 01-31-2009, 01:56 AM   #763
wirewrkr
the thread-killer

wirewrkr's Avatar

Joined: May 2008
Location: HIGH desert
Oddometer: 4,295
Quote:
Originally Posted by KTM640Dakar
There are alot of off shore companies that make welders for company's who private label them. Most of your big Tool catalogs have cheap welders in them and they are usually not very good. Your Chicago Electric is one example. The problem you then have is the catalog companies are always shopping to find a manufacturer who is willing to make an even cheaper machine so they change suppliers and drop the spare parts. Then you are stuck with a welder that you can't find parts for and you are screwed.

I would search the internet for Chicago Electric and see if you can find a new spool gun.

Or try this:

http://www.lincolnelectric.com/products/intros
/Powermig_140_180.asp
Believe it or not, Harbor Freight actually supports parts for their tools,
( chicago electric is their housebrand)
Give them a shot before throwing in the towel. Fix it and buy a heavier duty, better backed welder such as the Lincoln or a Miller. Yes I know how old this post was, but thought it might come in handy for someone else.
Robert
__________________

www.wirewerkes.com
KILL YOUR TELEVISION !!!!
wirewrkr is offline   Reply With Quote
Old 02-01-2009, 08:10 PM   #764
Wylie
Back in the saddle again

Wylie's Avatar

Joined: Jul 2007
Location: Shoshone, Idaho
Oddometer: 2,234
Okay yeah but you guys weld and I just don't know

I found these welding rod cases that are orange and I just don't know what the outside measurements of these cylinders are?
http://www.sears.com/shc/s/p_10153_1...00100600&aff=Y

I got them, 4 inches by 14 long
__________________
Okay so I'm not Super Man. I'm just the jack of many trades, master of some yet to find and as the world turns that would only be for a matter of time.

Okay, screw it, stop the world I'm getting off.

Wylie screwed with this post 02-01-2009 at 09:44 PM
Wylie is offline   Reply With Quote
Old 02-03-2009, 03:00 PM   #765
Skippii
Hookers, my lad.

Skippii's Avatar

Joined: May 2008
Location: Richmond, Va
Oddometer: 6,506
Quote:
Originally Posted by grizzzly
It can be done but when welding copper as it solidifies it becomes very brittle and cracks
Cool, thanks.
Though now I'm wondering why on earth I was asking about welding copper.
__________________
"Umm be careful what you say, this is Skippii....
You may get it delivered in the form of a shake or some interperative dance routine that involves nakedness, pizza and a stuffed raccoon..." -DCrider
Skippii is offline   Reply With Quote
