Old 10-20-2009, 06:38 PM   #1141
Tslapper
#!

Tslapper's Avatar

Joined: Mar 2005
Location: Mainely here
Oddometer: 6,152
Quote:
Originally Posted by KTM640Dakar
Most of the cheap TIG welders have air cooled torches which are their weakness.

No matter what the duty cycle of your TIG welder is, if you are using a TIG torch with a lower duty cycle then the torch will get too hot before the welder will. So you are limited by the duty cycle of your torch.

That is why most cheap TIG welding machines have an aircooled torches. If the torch was watercooled then you need a circulator for the water and the cost goes up.

Buy a Lincoln Precision TIG 225. It will accomplish 99% of what a home hobby welder needs.
I bought one of those last year and I'm getting done what I want to do.
Great machine!
Tslapper is offline   Reply With Quote
Old 10-28-2009, 05:36 PM   #1142
Zecatfish
XTique Rider

Zecatfish's Avatar

Joined: Dec 2006
Location: Arkansas USA
Oddometer: 7,919
Thumb Thank You.

I wanted to say thank you for the ADVice you all gave me on welding sheet metal. The torch size etc.

I took my old XT gas tank and cut it up today to make it wider and a little taller for increased capacity. How much? I 'm adding 6" to the width and 2" to the height. I'm guessing that it is going to be around 2 1/2 gallons as a rough estimate. For a total of about 6 gallons without adversely affecting anything.

I'm gas welding the sheet metal with 1/16" rod and a 0 sized tip. It's fairly easy is working nicely. I'm cutting up an old Nissan hood for the sheet metal to work with.

Thanks again, it may not be pretty but it should be functional.
__________________
Google Earth GPS Howto (still a work in progress) use USGS TOPO Maps to layout trails.
http://home.windstream.net/catfish/GPS


The Early Bird gets the worm, but the second mouse gets the cheese.
https://sites.google.com/site/ozarkadventuretours/

Zecatfish is offline   Reply With Quote
Old 10-28-2009, 05:51 PM   #1143
artk
hi

artk's Avatar

Joined: Jan 2006
Location: NYC
Oddometer: 383
Quote:
Originally Posted by Zecatfish
I wanted to say thank you for the ADVice you all gave me on welding sheet metal. The torch size etc.

I took my old XT gas tank and cut it up today to make it wider and a little taller for increased capacity. How much? I 'm adding 6" to the width and 2" to the height. I'm guessing that it is going to be around 2 1/2 gallons as a rough estimate. For a total of about 6 gallons without adversely affecting anything.

I'm gas welding the sheet metal with 1/16" rod and a 0 sized tip. It's fairly easy is working nicely. I'm cutting up an old Nissan hood for the sheet metal to work with.

Thanks again, it may not be pretty but it should be functional.

pics please
artk is offline   Reply With Quote
Old 10-28-2009, 08:34 PM   #1144
Zecatfish
XTique Rider

Zecatfish's Avatar

Joined: Dec 2006
Location: Arkansas USA
Oddometer: 7,919
Quote:
Originally Posted by artk
pics please

Ummm, NO,
Its not pretty but its coming together, I just started on it today. Might end up looking like Frankenstiens Monster.
Rat bike looking creation at the least. Using the sawzall to cut sheet metal. I love that thing.

I'm still making holes if I'm not careful but they're easier to fill back in with a gas rig, and you work slow with very low heat you can see the metal start to almost boil and work the metal where you need it. A lot easier than my stick welder. I've never been able to weld sheet metal with it.
__________________
Google Earth GPS Howto (still a work in progress) use USGS TOPO Maps to layout trails.
http://home.windstream.net/catfish/GPS


The Early Bird gets the worm, but the second mouse gets the cheese.
https://sites.google.com/site/ozarkadventuretours/

Zecatfish is offline   Reply With Quote
Old 10-29-2009, 03:29 PM   #1145
Zecatfish
XTique Rider

Zecatfish's Avatar

Joined: Dec 2006
Location: Arkansas USA
Oddometer: 7,919

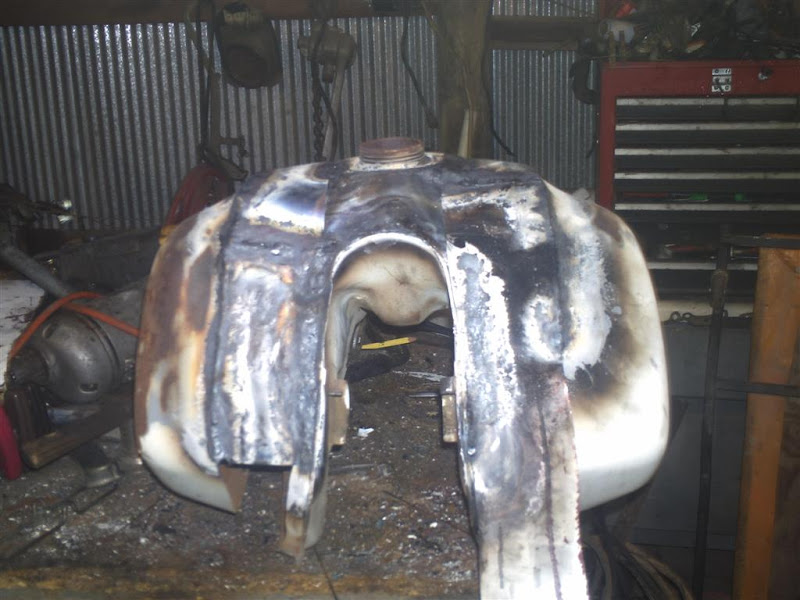

Pictures... The MAD MAX tank Conversion.

From XT-Morph


I'll post the rest someplace relevant, or follow the link and browse them there.
__________________
Google Earth GPS Howto (still a work in progress) use USGS TOPO Maps to layout trails.
http://home.windstream.net/catfish/GPS


The Early Bird gets the worm, but the second mouse gets the cheese.
https://sites.google.com/site/ozarkadventuretours/

Zecatfish is offline   Reply With Quote
Old 11-10-2009, 12:56 AM   #1146
mysterio
Eventually an Adventurer.

Joined: Aug 2007
Location: Sydney: Black tracks and concrete canyons
Oddometer: 985
Until now I've been using 3 phase TIG inverters and rectifiers, with which, I've been using my name brand but modestly priced auto darkening helmet with a 2.5 magnifier fitted and it works perfectly. BUT, recently I purchased a pricey single phase TIG inverter and the arc from this machine seems much brighter, so much so that I can hardly see what I'm doing. I changed the helmet shade darkening from 11 to 13 and that didn't help. What is going on?
__________________
"This is the way the world ends/Not with a bang but a whimper." T.S. Elliot.
"This is the way the world ends/ Not with a whim but a banker." Paul Desmond
.
mysterio is offline   Reply With Quote
Old 11-11-2009, 08:41 PM   #1147
tundrawolf
Desert Rat V Star

Joined: Mar 2009
Location: Lucerne Valley, California
Oddometer: 313
Quote:
Originally Posted by mysterio
Until now I've been using 3 phase TIG inverters and rectifiers, with which, I've been using my name brand but modestly priced auto darkening helmet with a 2.5 magnifier fitted and it works perfectly. BUT, recently I purchased a pricey single phase TIG inverter and the arc from this machine seems much brighter, so much so that I can hardly see what I'm doing. I changed the helmet shade darkening from 11 to 13 and that didn't help. What is going on?
I might be able to help you with this...

Try a single-shade low cost helmet with a 13 level shade. You will be surprised-that you will be able to see your work.

My friends' Harbor-Freight auto darkener was so bad I couldn't see *anything*. I ended up using a super cheap manual helmet with a 13 shade, and was able to see *everything*. It's just something about them. I am not sure if a more expensive auto darkener would solve the problem, or if maybe it was just a bad unit, but it was garbage. I couldn't see anything with it.
tundrawolf is offline   Reply With Quote
Old 11-13-2009, 05:12 AM   #1148
rick danger
Off the wagon

rick danger's Avatar

Joined: Dec 2005
Location: Oneonta, NY
Oddometer: 4,965
Do you think this machine will be a good choice for my stainless/aluminum/thin steel bike projects? All I have now is a Lincoln 225 stick welder. . ...Which brings up another question. Why a place for two cylinders? Are they both argon, one for a backup? Or are there two types of gas that can be used. Sorry to be ignorant. http://store.cyberweld.com/mil210witspo.html
__________________
'08Husky TE 610 '07 R12GSA '07 KTM 950sm '92 GOLD WING '77 HUSKY 390 CR '72 Honda xl 250 '71 Honda sl 125 '79 HUSKY390cr '75 Can Am 250 MX-2 '70 Honda CT 70
'05 R12GS.....R.I.P. (rest in pieces)


rick danger screwed with this post 11-16-2009 at 02:09 PM
rick danger is offline   Reply With Quote
Old 11-13-2009, 06:51 AM   #1149
Bump Stop
2 Wheeled Drifter

Bump Stop's Avatar

Joined: Aug 2009
Location: finding Jesus
Oddometer: 5,554
you use strait argon for aluminum.

for steel you can use anything from strait co2 which is the cheapest to any number of co2/argon mixes.

i use a c10, which is 90% argon/ 10% co2. i like a strong argon mixture, less splatter. if i can't get c10 i'll use c25.
__________________
10 GASGAS EC300, 06 Husqvarna WR 250, 05 KTM 250EXC, 04 GASGAS EC 200, 00 KDX 220, 74 250 Mach 1
www.fuzionllc.com
Bump Stop is offline   Reply With Quote
Old 11-13-2009, 07:20 AM   #1150
GSWayne
Old Guy nOOb

GSWayne's Avatar

Joined: Mar 2005
Location: Santa Barbara
Oddometer: 2,944
Quote:
Originally Posted by mysterio
Until now I've been using 3 phase TIG inverters and rectifiers, with which, I've been using my name brand but modestly priced auto darkening helmet with a 2.5 magnifier fitted and it works perfectly. BUT, recently I purchased a pricey single phase TIG inverter and the arc from this machine seems much brighter, so much so that I can hardly see what I'm doing. I changed the helmet shade darkening from 11 to 13 and that didn't help. What is going on?
Could it be that the darkening is not being triggered? Are you running lower current when you have had this problem? I have had to adjust the sensitivity of mine to trip when welding with low current.
__________________
It isn't the conditions its the decisions

Don't bring a motorcycle to a car fight
GSWayne is offline   Reply With Quote
Old 11-13-2009, 08:54 AM   #1151
Strong Bad
n00balicious

Strong Bad's Avatar

Joined: Oct 2007
Oddometer: 3,836
Quote:
Originally Posted by mysterio
Until now I've been using 3 phase TIG inverters and rectifiers, with which, I've been using my name brand but modestly priced auto darkening helmet with a 2.5 magnifier fitted and it works perfectly. BUT, recently I purchased a pricey single phase TIG inverter and the arc from this machine seems much brighter, so much so that I can hardly see what I'm doing. I changed the helmet shade darkening from 11 to 13 and that didn't help. What is going on?
This doesn't sound right to me. A tig welder or even a standard buzz box arc welder is simply a machine that converts power from a source (wall plug/generator whatever) to the type and amount of electricity you want at the torch. So if you want 90 amps of DC- at the torch, the welder takes whatever you input in to it and performs it's magic to yield the 90a DC-. What I'm saying is that what you have at the torch should be the same no matter if you put single phase, or three phase into the welder (as long as the welder is set up properly). The inverters do the same it's just with new-fangled electronics. The 90a DC- output from a welder will yield the same light no matter what the input was. I would double check the set up on the new machine.
__________________
"I couldn't wait for success, so I went ahead without it."
Strong Bad is online now   Reply With Quote
Old 11-13-2009, 12:01 PM   #1152
mysterio
Eventually an Adventurer.

Joined: Aug 2007
Location: Sydney: Black tracks and concrete canyons
Oddometer: 985
Quote:
Originally Posted by tundrawolf
I might be able to help you with this...

Try a single-shade low cost helmet with a 13 level shade. You will be surprised-that you will be able to see your work.

My friends' Harbor-Freight auto darkener was so bad I couldn't see *anything*. I ended up using a super cheap manual helmet with a 13 shade, and was able to see *everything*. It's just something about them. I am not sure if a more expensive auto darkener would solve the problem, or if maybe it was just a bad unit, but it was garbage. I couldn't see anything with it.
Oops!..Always check for simple errors first I was focused on the shade level and completely overlooked the sensitivity level which had been knocked from high to low. Went to a mates place and we compared set-ups..HE noticed the setting level, but after trying his helmet I decided to get a better one for myself.
__________________
"This is the way the world ends/Not with a bang but a whimper." T.S. Elliot.
"This is the way the world ends/ Not with a whim but a banker." Paul Desmond
.
mysterio is offline   Reply With Quote
Old 11-13-2009, 12:59 PM   #1153
Motomantra
Registered Lurker

Motomantra's Avatar

Joined: Mar 2008
Location: Beaverton, OR
Oddometer: 1,184
What can I expect from this...

Thanks to all the welders that contributed to this thread, I've come to the conclusion that I can not afford a proper welder for the limited amount of projects that I'd be doing. (Mild steel, EMT conduit, etc.)
So guys, what can I expect from this Harbor Freight cheapy. Description as follows: MIG 90 A. flux core 115v. 10% duty @ 80A. .030 wire.
If you say it's a waste of $95.00 (on sale) well, you'll have saved me $95.00.
Thanks guys.
__________________
For those that fight for it, freedom has a flavor the protected will never know.
Motomantra is online now   Reply With Quote
Old 11-13-2009, 07:32 PM   #1154
mark1305
Old Enough To Know Better

mark1305's Avatar

Joined: Feb 2005
Location: Merritt Island, FL
Oddometer: 5,971
As long as you don't need to do aluminum, you can get by quite well with a quality (one of the big 3 brand name) MIG in the 120-140 amp range.

Don't know the price ranges today, but about 10 years ago I bought a Hobart Handler 120 (now superceded by at least the Handler 140) for about $400. Running C25 gas (75% argon and 25% Co2) I regualrly do regualr steel projects from sheet metal up to 3/16" or 1/4" with multi passes and stainless steel with only slight discoloration from the Co2 in the mix (different filler wire, of course).

It has more than paid for itself in little repairs and fabrication projects. Easy to learn on your own. Runs on 120V so it can go anywhere.

Do I wish I had a bigger machine? Sometimes. Do I have to have a bigger machine? Not so far. There are tricks of the trade like preheating or multipassing or both that greatly extend the capability of these small machines. When I used to hang out on a welding news group, one of the mainstays there who was a welding instructor recounted how he used a Handler 120 like mine on a bet to butt weld two pieces of 1 inch thick steel together and have them pass a coupon test where the weld got bent 180 degrees. (A) He is super good. (B) It took a long time. But it proves that a small scale machine can do extraordinary jobs with a little extra knowlege and skills.

Plan on spending at least $400 - $600 and find the best supplier in your area to give all your business to. Some are great. Some are clueless. Some don't like dealing with hobby weldors and jack up the price for gas or other stuff. Shop around and take notes.
__________________
Mark J
Merritt Island, FL

When a person asks you for advice, they don't want advice. They want corroboration.
mark1305 is offline   Reply With Quote
Old 11-16-2009, 02:06 PM   #1155
rick danger
Off the wagon

rick danger's Avatar

Joined: Dec 2005
Location: Oneonta, NY
Oddometer: 4,965
Quote:
Originally Posted by Bump Stop
you use strait argon for aluminum.

for steel you can use anything from strait co2 which is the cheapest to any number of co2/argon mixes.

i use a c10, which is 90% argon/ 10% co2. i like a strong argon mixture, less splatter. if i can't get c10 i'll use c25.
Thanks for the reply. So I'll get two tanks. Any input on this machine? http://store.cyberweld.com/mil210witspo.html
__________________
'08Husky TE 610 '07 R12GSA '07 KTM 950sm '92 GOLD WING '77 HUSKY 390 CR '72 Honda xl 250 '71 Honda sl 125 '79 HUSKY390cr '75 Can Am 250 MX-2 '70 Honda CT 70
'05 R12GS.....R.I.P. (rest in pieces)

rick danger is offline   Reply With Quote
