Thinking outside the box...Post your Farkels! - Page 65

HaChayalBoded · 05-28-2012, 12:07 PM

Quote:

Originally Posted by holeshotz

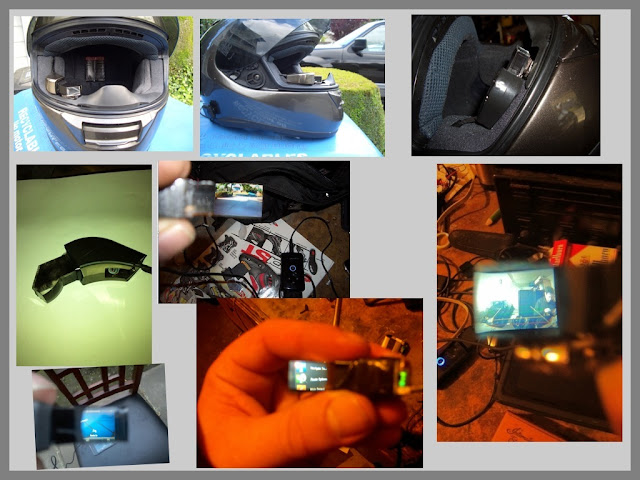

Hello here's something i bet you've never seen before..,its an HMD (helmet mounted display). The display unit mounts inside my helmet , and connects to a small back up camera mounted on the tail light. The camera has a 170 degree viewing angle which translates into a full view of all three lanes behind you ...all without even moving your head i can also connect it to my iphone (running tomtom) with a simple cable swap

Guess I've been out of the high tech loop for a while. What is the little screen you are using? Smallest I found was 2 or 3 inches, was considering putting it on my dash.

the kaz · 05-28-2012, 12:47 PM

Quote:

Originally Posted by HaChayalBoded

Guess I've been out of the high tech loop for a while. What is the little screen you are using? Smallest I found was 2 or 3 inches, was considering putting it on my dash.

YES what he said

more tiny screen info please

IRideASlowBike · 05-28-2012, 02:53 PM

Quote:

Originally Posted by holeshotz

Hello here's something i bet you've never seen before..,its an HMD (helmet mounted display). The display unit mounts inside my helmet , and connects to a small back up camera mounted on the tail light. The camera has a 170 degree viewing angle which translates into a full view of all three lanes behind you ...all without even moving your head i can also connect it to my iphone (running tomtom) with a simple cable swap

Damn, that's some high tech fighter pilot shit right there.

You should put missiles on your bike next.

holeshotz · 05-28-2012, 05:51 PM

Quote:

Originally Posted by IRideASlowBike

Damn, that's some high tech fighter pilot shit right there.

You should put missiles on your bike next.

What makes you think i dont already

RevBill · 05-28-2012, 07:22 PM

I got everyone thinking they hold oil and fuel bottles ..

marine_mike · 05-28-2012, 07:43 PM

That HUD is made by Recon Instruments and is originally meant to be used for moto x and whatever sport utilizes goggles.

http://www.reconinstruments.com/products/mod

The picture shown above is someone that has adapted it to work in a regular FF helmet.

holeshotz · 05-28-2012, 08:22 PM

Quote:

Originally Posted by marine_mike

That HUD is made by Recon Instruments and is originally meant to be used for moto x and whatever sport utilizes goggles.

http://www.reconinstruments.com/products/mod

The picture shown above is someone that has adapted it to work in a regular FF helmet.

incorrect, I made this device before Recon came to market. However both device do use the same optics which are actually made by a company called Kopin. I'm putting together a how to document and will post it up here shortly

marine_mike · 05-28-2012, 08:56 PM

Quote:

Originally Posted by holeshotz

incorrect, I made this device before Recon came to market. However both device do use the same optics which are actually made by a company called Kopin. I'm putting together a how to document and will post it up here shortly

Well hell...that's even better news to me.

Their unit has to have a subscription in order to utilize the GPS feature. By all means...post it up...plus parts needed.

holeshotz · 05-28-2012, 10:16 PM

and here ya go !!! its a bit rough but should be able to follow it ok. Let me know if you have any questions.

https://docs.google.com/open?id=0B1n...3F2UmNxUjVzR2M

holeshotz · 05-28-2012, 10:18 PM

Quote:

Originally Posted by marine_mike

Well hell...that's even better news to me.

Their unit has to have a subscription in order to utilize the GPS feature. By all means...post it up...plus parts needed.

strange i posted a link to the pdf document but a msg from the ADV website stating it wont be visible until a moderator reviews WTF?

beechum1 · 05-29-2012, 09:42 AM

Quote:

Originally Posted by holeshotz

strange i posted a link to the pdf document but a msg from the adv website stating it wont be visible until a moderator reviews wtf?

sopa.

holeshotz · 05-29-2012, 12:57 PM

Quote:

Originally Posted by beechum1

sopa.

not sure how im violating sopa

beechum1 · 05-29-2012, 01:09 PM

Quote:

Originally Posted by holeshotz

not sure how im violating sopa

You're likely not. That's what the verification is for. .pdf's are a popular way of transmitting copyrighted service manuals on forums. I would suspect, at least, this is the reason for the approval period.

marine_mike · 05-29-2012, 01:23 PM

copy and paste it to word format and post.

assquatch20 · 05-29-2012, 01:25 PM

Yeah, if you're trying an attachment from your computer, that doesn't really work on here anymore I believe. It has to come from some other hosting site.

EDIT: Whoops, saw that you were linking it. Not sure why that would happen.

05-28-2012, 07:22 PM	#965
RevBill Irreverent Reverend Joined: May 2008 Location: Mayodan, NC Oddometer: 2,083	Shhhhh ... I got everyone thinking they hold oil and fuel bottles .. __________________ "On the road less traveled there ain't no TP, bring your own and that will make all the difference.." RevBill's SmugMug Shenanigans My '06 KLR

05-28-2012, 10:16 PM	#969
holeshotz Adventurer Joined: May 2012 Location: san jose, ca Oddometer: 20	and here ya go !!! its a bit rough but should be able to follow it ok. Let me know if you have any questions. https://docs.google.com/open?id=0B1n...3F2UmNxUjVzR2M __________________ if im not back in 15 minutes...just wait longer holeshotz screwed with this post 05-29-2012 at 09:08 PM

05-29-2012, 01:25 PM	#975
assquatch20 Hoss Cat Joined: Jan 2010 Location: Alpine/Cookeville, Tennessee Oddometer: 1,108	Yeah, if you're trying an attachment from your computer, that doesn't really work on here anymore I believe. It has to come from some other hosting site. EDIT: Whoops, saw that you were linking it. Not sure why that would happen. __________________ Some things shouldn't be left like you found them.
