Old 02-26-2010, 06:31 PM   #76
Jody H
Gnarly Adventurer

Joined: Mar 2008
Location: New Mexico
Oddometer: 397

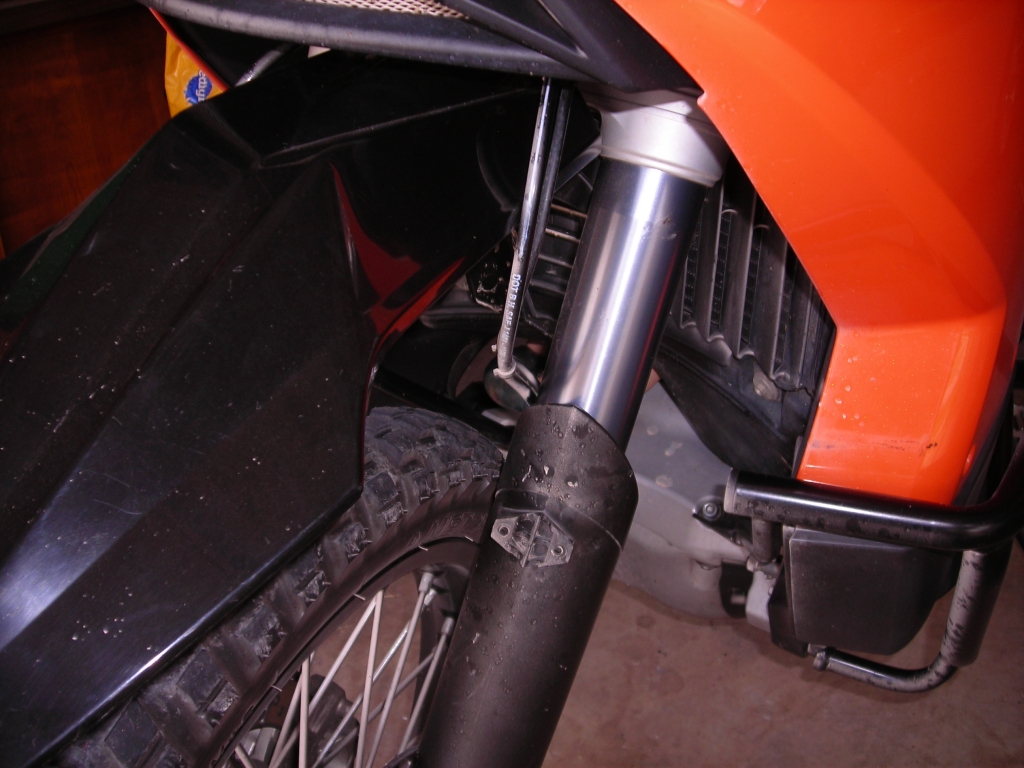

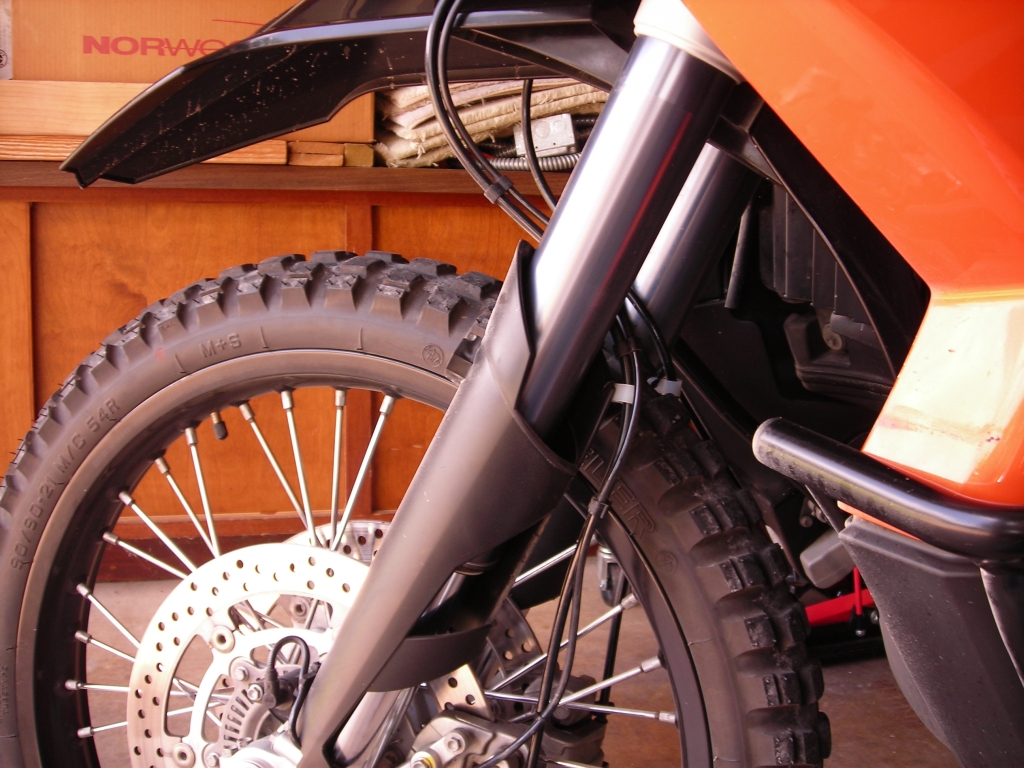

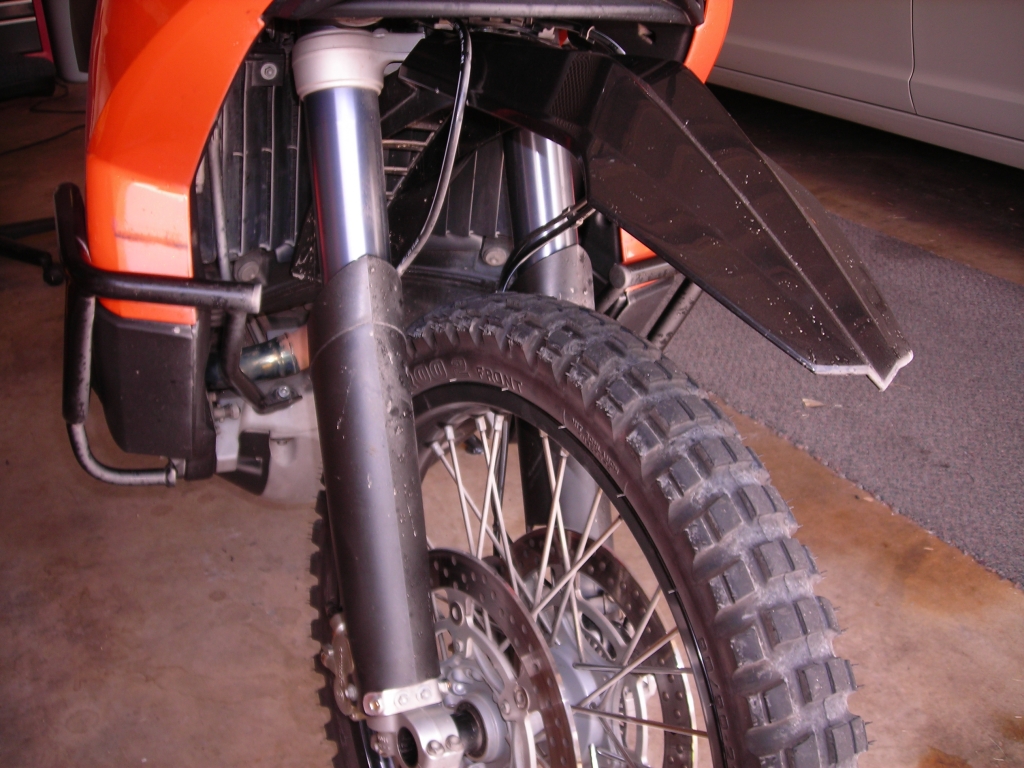

I used some cheap clamps from NAPA, buttonhead allen bolts and Nylock nuts.
Drilled holes in the fork guards and used the clamps as brake line guides. I put the buttonhead towards the forks so there isn't anything to hang or scratch the forks (there's plenty of clearance, but just in case) and used a Nylock nut so it won't vibrate loose.
I also use the KTM carbon fork guards to keep the brake lines from rubbing directly on the aluminum forks.
btw: these are "Adv S" brake lines since I've done a full ABS removal.







__________________
'07 Aprilia Tuono
'07 Aprilia RXV 4.5
'07 KTM 990 Adventure
'09 Aprilia Mana

Jody H screwed with this post 02-26-2010 at 06:40 PM
Jody H is offline   Reply With Quote
Old 02-26-2010, 06:56 PM   #77
chasbo
Beastly Adventurer

chasbo's Avatar

Joined: May 2005
Location: Fayetteville, Pennsylvania
Oddometer: 1,509
How hard was that ABS removal? BTW, the setup looks nice...
__________________
"Dakar must be a race for few people, Dakar is a dream, the dream of the Rose Lake, if everybody finish it, the dream is over" Fabrizio Meoni
chasbo is offline   Reply With Quote
Old 02-26-2010, 07:06 PM   #78
Jody H
Gnarly Adventurer

Joined: Mar 2008
Location: New Mexico
Oddometer: 397
Quote:
Originally Posted by chasbo
How hard was that ABS removal? BTW, the setup looks nice...
Here's the writeup I did on my removal.
http://www.advrider.com/forums/showthread.php?t=552057
__________________
'07 Aprilia Tuono
'07 Aprilia RXV 4.5
'07 KTM 990 Adventure
'09 Aprilia Mana
Jody H is offline   Reply With Quote
Old 02-26-2010, 07:19 PM   #79
chasbo
Beastly Adventurer

chasbo's Avatar

Joined: May 2005
Location: Fayetteville, Pennsylvania
Oddometer: 1,509
Quote:
Originally Posted by Jody H
Here's the writeup I did on my removal.
http://www.advrider.com/forums/showthread.php?t=552057

Thanks!
__________________
"Dakar must be a race for few people, Dakar is a dream, the dream of the Rose Lake, if everybody finish it, the dream is over" Fabrizio Meoni
chasbo is offline   Reply With Quote
Old 03-22-2010, 03:11 PM   #80
dominiks3
Adventurer

dominiks3's Avatar

Joined: Apr 2008
Location: Poland
Oddometer: 37
do you guys gave similar problems? my brake hoses damage forks..

Have you thought about any brake hose guides here?
If you guys have the brakehoses between the fork legs, does it take damage as well?

maybe a teflon sticker or something?

1

2




look, brake hoses work all the time..
http://www.youtube.com/watch?v=xRewR...layer_embedded
__________________
2010 KTM 990 Adventure R
2004 HONDA XR650R
1963 WSK 125
2003 BMW 1150 Adventure - sold
dominiks3 is offline   Reply With Quote
Old 03-22-2010, 03:18 PM   #81
Garand OP
Keeper of Useful Sarcasms

Garand's Avatar

Joined: Oct 2004
Location: NE OK
Oddometer: 679
Quote:
Originally Posted by dominiks3
do you guys gave similar problems? my brake hoses damage forks..

Have you thought about any brake hose guides here?
If you guys have the brakehoses between the fork legs, does it take damage as well?

maybe a teflon sticker or something?
I put on a pair of WP suspension stickers(mine are clear not carbon fiber look) to minimize that wear.

I also cut a few inches of clear fuel line to slip over the lines at the contact points in case I started noticing wear, haven't had to put them on yet though.

Garand is offline   Reply With Quote
Old 03-22-2010, 04:36 PM   #82
Jody H
Gnarly Adventurer

Joined: Mar 2008
Location: New Mexico
Oddometer: 397
Quote:
Originally Posted by dominiks3
do you guys gave similar problems? my brake hoses damage forks..

Have you thought about any brake hose guides here?
If you guys have the brakehoses between the fork legs, does it take damage as well?

maybe a teflon sticker or something?
Answered you in my earlier post.
Quote:
Originally Posted by Jody H
I also use the KTM carbon fork guards to keep the brake lines from rubbing directly on the aluminum forks.
__________________
'07 Aprilia Tuono
'07 Aprilia RXV 4.5
'07 KTM 990 Adventure
'09 Aprilia Mana
Jody H is offline   Reply With Quote
Old 04-06-2010, 02:40 PM   #83
Katoom119
Mmmm....Orange Kool-aid

Katoom119's Avatar

Joined: Jun 2007
Location: Knoxville, TN
Oddometer: 1,763
Quote:
Originally Posted by Jody H
I used some cheap clamps from NAPA, buttonhead allen bolts and Nylock nuts.
Drilled holes in the fork guards and used the clamps as brake line guides. I put the buttonhead towards the forks so there isn't anything to hang or scratch the forks (there's plenty of clearance, but just in case) and used a Nylock nut so it won't vibrate loose.
I also use the KTM carbon fork guards to keep the brake lines from rubbing directly on the aluminum forks.
btw: these are "Adv S" brake lines since I've done a full ABS removal.








I like it. I've been thinking of what to use to accomplish that exact same thing. Off to NAPA!
__________________
Those who dance are considered crazy by those who do not hear the music.
I am not the same having seen the moon shine on the other side of the world. - Radmacher

5 Cylinders vs. Moab..........My East Tennessee.........Internships may go to Hell and I will go to Alaska
Katoom119 is offline   Reply With Quote
Old 07-10-2010, 10:38 PM   #84
groverjones
Now with more Orange

groverjones's Avatar

Joined: Dec 2009
Location: Maffra, Vic
Oddometer: 40
How I done it

And when I say "I," you know I mean "my mechanic." It took them a whole afternoon, but it would have taken me a week!

[IMG]High Fender[/IMG]
[IMG]KTM - High Fender[/IMG]
[IMG]KTM - R Fork Slider Bracket[/IMG]
[IMG]KTM - L Fork Slider - Bracket And ABS Mod[/IMG]
[IMG]KTM - R Fork Slider Brake Lead Clip[/IMG]
[IMG]KTM - R Fork Slider[/IMG]


Hope this helps, and more importantly, hope KTM get their act together and make a kit for the 990ADV!

Stuart
__________________

2010 KTM 990 Adventure
http://www.stuartanderson.com.au
http://www.amnesiabluesband.com

groverjones screwed with this post 07-10-2010 at 10:47 PM
groverjones is offline   Reply With Quote
Old 07-23-2010, 02:45 PM   #85
Taurkon
Studly Adventurer

Taurkon's Avatar

Joined: Aug 2007
Location: Calgary, Ab
Oddometer: 600
** High Fender Warning **

So, I have had my high fender for a couple years now (about 21,000km) and noticed today considerable wear on the forks from the lines rubbing. Mine are on the inside. I strongly recommend anyone who has done the high fender conversion to check their forks. I will probably put a sticker over and add some silicone to the lines.
Taurkon is offline   Reply With Quote
Old 07-24-2010, 11:01 AM   #86
DirtJack
Adventurer

DirtJack's Avatar

Joined: Aug 2007
Location: San Antonio, Texas
Oddometer: 1,092
Quote:
Originally Posted by Taurkon
So, I have had my high fender for a couple years now (about 21,000km) and noticed today considerable wear on the forks from the lines rubbing. Mine are on the inside. I strongly recommend anyone who has done the high fender conversion to check their forks. I will probably put a sticker over and add some silicone to the lines.
I left the brake lines on my 2007 on the inside just as they were with the low fender. They didn't touch the fork tubes before the high fender installation and don't touch the tubes after.





__________________
Remember, you're reading this on the Internet and it was written by a guy who can remember stuff which never happened.
2014 KTM 1190 Adventure R
2008 KTM 300 XC (plated)
2008 KTM 690 Enduro
DirtJack is offline   Reply With Quote
Old 08-10-2010, 03:17 PM   #87
Davestr
Gnarly Adventurer

Joined: Jun 2007
Location: Topeka
Oddometer: 397
Are the orange ones also 85sx?

Forkprotectors?
__________________
USA agent www.aerotrim.co.za

Wicked Dreams and quest for adventure.
Davestr is offline   Reply With Quote
Old 09-24-2010, 11:30 PM   #88
ten_fiver
Beastly Adventurer

ten_fiver's Avatar

Joined: May 2008
Location: Evanston, Wyoming
Oddometer: 1,957
Resurrecting the thread

I'm going back to the brake lines inside/outside debate. I would feel better running the lines outside, but I'm not sure how to do this. I'm a rookie when it comes to wrenching on bikes so hear me out.

Can you just pop the lines off at the brakes, re-route them, then hook them back up? Or do you have to bleed the lines after you remove them?

Also; I don't like the clearance between the rear of the fender and the radiator fins/SW Motech cross-bar no matter how I set up the bushings. Are there any negative side effects of cutting an inch or so off the rear of the fender?

Thanks in advance.
__________________

ten_fiver is online now   Reply With Quote
Old 09-25-2010, 03:54 AM   #89
Garand OP
Keeper of Useful Sarcasms

Garand's Avatar

Joined: Oct 2004
Location: NE OK
Oddometer: 679
Quote:
Originally Posted by ten_fiver

Can you just pop the lines off at the brakes, re-route them, then hook them back up? Or do you have to bleed the lines after you remove them?

Also; I don't like the clearance between the rear of the fender and the radiator fins/SW Motech cross-bar no matter how I set up the bushings. Are there any negative side effects of cutting an inch or so off the rear of the fender?

Thanks in advance.
Don't mess with removing the brake lines, remove the entire caliper (2 screws) and re-route.. much easier and no bleeding involved.

I don't see any problem with cutting the fender to make your clearances.
Garand is offline   Reply With Quote
Old 09-25-2010, 04:27 PM   #90
ten_fiver
Beastly Adventurer

ten_fiver's Avatar

Joined: May 2008
Location: Evanston, Wyoming
Oddometer: 1,957
Yea, I guess removing the caliper would be easier, didn't think about that. Thanks for the help Garand. This thread has been a huge help with the high fender mod, especially all your pics. Thanks again!
__________________

ten_fiver is online now   Reply With Quote
