Old 06-07-2008, 04:55 AM   #106
dmobrien2001
n00b

Joined: Jun 2008
Oddometer: 6
dmobrien2001 is offline   Reply With Quote
Old 06-07-2008, 12:45 PM   #107
claude
Sidecar Jockey

Joined: Mar 2002
Location: Middleburg, Pa. (Snyder County)
Oddometer: 3,495
Possible a thread on center hub steering is in order?
__________________
Claude

Founder: Internet Sidecar Owners Klub at SCT
http://autos.groups.yahoo.com/group/SCT/

President: C Stanley Motorsports Inc.
http://autos.groups.yahoo.com/group/...rsandTrailers/

http://freedomsidecars.com/
claude is offline   Reply With Quote
Old 06-08-2008, 02:35 PM   #108
Bad Cat Racing
F1 Sidecar Racer

Bad Cat Racing's Avatar

Joined: Feb 2008
Location: Santa Cruz, CA
Oddometer: 191

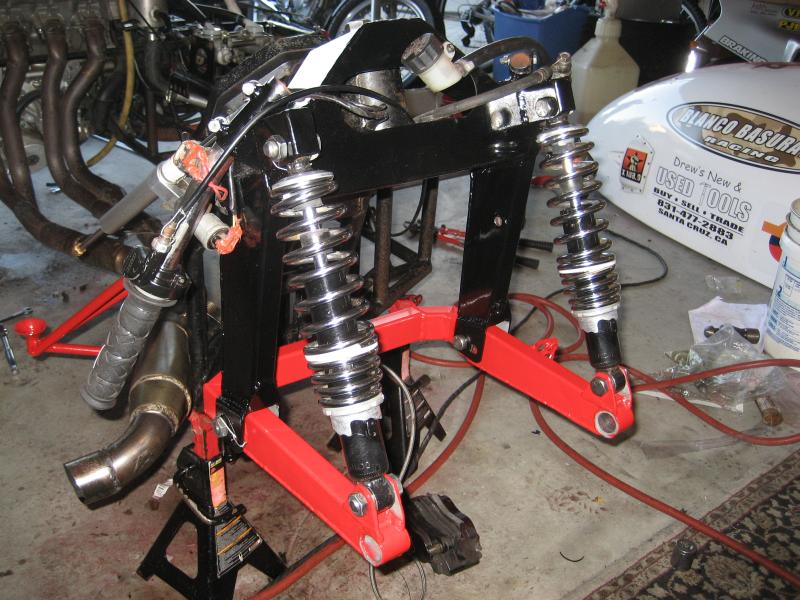

[img]
Bad Cat Racing is offline   Reply With Quote
Old 06-08-2008, 05:16 PM   #109
Ural Australia
Banned

Joined: May 2008
Oddometer: 52
Quote:
Originally Posted by Pezz_gs
G'day Ural Australia

Can you post some pics of what you have seen and ridden please
Unfortunately a vengeful-ex put paid to that. She thought photos made great fire starters.
Ural Australia is offline   Reply With Quote
Old 06-08-2008, 05:35 PM   #110
Ural Australia
Banned

Joined: May 2008
Oddometer: 52
Quote:
Originally Posted by vortexau
I encountered the same sort of misunderstanding during correspondence with Craig Vetter! Initially he considered Hossacks to be Girders!
The Britten is often described as having a girder front-end even though it's clearly a Hossack/Fior design.

Quote:
Originally Posted by vortexau
Norman had difficulty getting any motorcycle builders to try his system, and only BMW seemed to appreciate its advantages. Then, BMW's main version was only half-Hossack until the K1200S with its (full Hossack) Duolever front end.
The BMW Telelever is a Saxon-Motodd copy and operates quite differently from the Hossack. In the Saxon-Motodd design, suspension is still a function of the uprights (telescopic forks) but suspension loads are input into the chassis from both the A-arm and steering head. In the Hossack design the upright is merely a steered component and all suspension loads are carried by the two A-arms.

The Hossack system should be ideal for sidecar useage and if combined with a steerable sidecar wheel (about 50% of the front wheel input) and a torsion bar interconnect to the rear wheel (a concept well-proven by MZ-Stoye with the Superelastik) would create a delightful outfit.

Unfortunately the Australian ADR width limits tend to make a steerable sidecar wheel VERY difficult.
Ural Australia is offline   Reply With Quote
Old 08-18-2008, 05:13 PM   #111
Pezz_gs OP
Cant ride for crap

Pezz_gs's Avatar

Joined: Nov 2004
Location: Sydney Skunkworks
Oddometer: 3,710
Well,

This thread went quiet as a few months back I had a friend with a set of 'Unit' leading links at the right price. I called him the other day and said give me your bank account details. he said what for, I said to pay for the Units.

He said Oh %@#&, I sold them last week. I thought he was having a stir, but no, he forgot he said they were mine. No hard feelings really. He is a good mate albeit a little bit forgetful.

So now I am back in the designing stakes. so keep posting pics and ideas.

Centre hub has its merits but for off-road work would the unsprung mass be a little higher?
__________________
Airhead Tragic
I'm not a complete idiot -- Some parts are missing
XR460/4 - http://www.advrider.com/forums/showthread.php?t=497905


Pezz_gs is offline   Reply With Quote
Old 08-19-2008, 07:08 AM   #112
larryboy
Leisurely Liar

larryboy's Avatar

Joined: Jan 2005
Location: On a set of 50,000 mile tires.
Oddometer: 13,852
Quote:
Originally Posted by Pezz_gs
Centre hub has its merits but for off-road work would the unsprung mass be a little higher?

I'm very interested in hub center, but worry about wheel travel mostly. Strength seems to be there..LL is easier to build.

Maybe we do need a hub center thread?
__________________
Be sure the safest rule is that we should not dare to live in any scene in which we dare not die. ~Lewis Carroll~
larryboy is offline   Reply With Quote
Old 08-19-2008, 12:10 PM   #113
Bad Cat Racing
F1 Sidecar Racer

Bad Cat Racing's Avatar

Joined: Feb 2008
Location: Santa Cruz, CA
Oddometer: 191
Quote:
Originally Posted by larryboy
I'm very interested in hub center, but worry about wheel travel mostly. Strength seems to be there..LL is easier to build.

Maybe we do need a hub center thread?
When it comes to sidecars, Hub Center Steering is the bomb.

Steering effort is featherweight since you're not fighting the tire, it tracks -so much better- and the tire does not go up on edge when you turn it. Your contact patch remains flat during the entire turn of the bars, lock to lock.

Not only that, But since a hub center bike moves it's axle straight up and down as opposed to in an arc, your numbers are constant throughout suspension travel, you can get your chassis -perfect- with Hub Center Steering.

Oh, and let's not forget ease of service. Knock off one nut, or four lugs and your wheel is dropped off the carrier. Access to your brakes, spindle, bearings, everything... in about five minutes. As opposed to leading link which is a PITA to simply remove the wheel to get access to anything if you're running a meaty front rim like I am.

All high performance sport touring or serious performance sidecars with wide front rims should be running hub center steering front ends, it's the only way to fly.

I'll be thrilled when we switch over to an LCR chassis next year and I have the luxury of knocking off one nut and pulling a wheel right off our double wishbone front end.
__________________
Bad Cat Racing ~ Formula 1 Sidecar
Currently Ranked: Finished 2nd in the National Standings ~ Finished 3rd in the West Coast Challenge
Team Site ~ http://www.badcatracing.com
Our Blog ~ http://blog.badcatracing.com
Sidecar Racers Association West ~ http://www.sra-west.us

Bad Cat Racing screwed with this post 08-19-2008 at 05:41 PM
Bad Cat Racing is offline   Reply With Quote
Old 08-19-2008, 04:53 PM   #114
Pezz_gs OP
Cant ride for crap

Pezz_gs's Avatar

Joined: Nov 2004
Location: Sydney Skunkworks
Oddometer: 3,710
Sounds like the go.

So where does one find info on setup ect?
[img]bimota_tesi2d.jpg[/img]
I have seen talk of using a car front wheel drive (Civic) hub.

home.planet.nl/ ~dreuning/mygts2.html

[img]http://home.planet.nl/~dreuning/mygts/frontwheel3.jpg[/img]

[img]http://home.planet.nl/~dreuning/mygts/frontwheel14.jpg[/img]

[img]http://www.partsmag.com/0503/V-Twin-Expo-0503/Center-hub-Custom-p72.jpg[/img]
__________________
Airhead Tragic
I'm not a complete idiot -- Some parts are missing
XR460/4 - http://www.advrider.com/forums/showthread.php?t=497905


Pezz_gs is offline   Reply With Quote
Old 08-19-2008, 05:57 PM   #115
Bad Cat Racing
F1 Sidecar Racer

Bad Cat Racing's Avatar

Joined: Feb 2008
Location: Santa Cruz, CA
Oddometer: 191
Quote:
Originally Posted by Pezz_gs
Sounds like the go.

So where does one find info on setup ect?
Personally... you'll want to start by talking to the guys at the HP Sidecars Forum.

http://hpsidecars.com/forum/


Look at the front end on this week's feature rig... sexy. I even see a concentric bottom adjuster for changing the caster.



There are several threads right now just on hub center design specifics and theory. Here's a new one for example...

http://hpsidecars.com/forum/viewtopic.php?t=538


And here's a cantilever A-arm setup on a Hayabusa HPS

Quote:
and i very empressed of this system. This is the best i could find on the market. Also the break is out of the wheel and can better cooling by air while running. So also the break power is fantastic and cannot compare with other existing systems.

They are 2 breaks on the wheel. One (blue) is for the foot break and the second (black one) is for hand break.
So in case you can push both. Amazing


These parts look heavy, but you can't think in 'motorcycle' terms any longer, you have to think in 'race car' terms now, since once you slap three big wheels on a motorcycle you've essentally turned it into a very light and fast car. And if you do that... these components are pretty light weight for what they do.

Aside from that. Look at the photos on LCR's website and other professional Formula 1 sidecar builder websites.

I'm in the process right now of desiging my own F1 sidecar chassis in SolidWorks driven by the inspiration from dpcars.net. I'm going to use all the drivetrain (minus engine) wheels, and suspension components on my monocoque chassis design sourced from the Radical SR4 and SR3 mass production club sports race cars.

Why redesign the wheel when you can order exactly the components you need right off the shelf from someone else ready to go and fit them to a chassis of your own design? Everything is there in the 'Suspension System' catalog to build a 100% complete turnkey Hub Center Steering front suspension down to the bushings for the A-Arms.

That'l give you somewhere to start.

-Mike-
__________________
Bad Cat Racing ~ Formula 1 Sidecar
Currently Ranked: Finished 2nd in the National Standings ~ Finished 3rd in the West Coast Challenge
Team Site ~ http://www.badcatracing.com
Our Blog ~ http://blog.badcatracing.com
Sidecar Racers Association West ~ http://www.sra-west.us
Bad Cat Racing is offline   Reply With Quote
Old 08-19-2008, 06:24 PM   #116
Pezz_gs OP
Cant ride for crap

Pezz_gs's Avatar

Joined: Nov 2004
Location: Sydney Skunkworks
Oddometer: 3,710
Thanks Mike.

That gives me a LOT to work through

I have joined the HP sidecars site and will start reading
__________________
Airhead Tragic
I'm not a complete idiot -- Some parts are missing
XR460/4 - http://www.advrider.com/forums/showthread.php?t=497905


Pezz_gs is offline   Reply With Quote
Old 08-19-2008, 06:36 PM   #117
HogWild
Scott Whitney

HogWild's Avatar

Joined: Nov 2003
Location: SoCal USA
Oddometer: 2,550
Quote:
Originally Posted by larryboy
I'm very interested in hub center, but worry about wheel travel mostly.
Looking at the two rigs above, it looks like they both have quite limited suspension travel. That's probably fine for a street rig, but for dual sport or off-road, you would definitely want a system that gives more travel than those. The other negatives are the un-sprung and overall weight. A leading link setup looks much better in those respects. Again, for anything going where there are bumps, weight is definitely bad. The one thing that I like about the center hub system is that the tire stays level while turning. That's definitely nice if you have a wide and flat profile tire up front.
__________________
.
New desert racing frontiers
It will be Diabolical!
HogWild is offline   Reply With Quote
Old 08-19-2008, 06:44 PM   #118
Pezz_gs OP
Cant ride for crap

Pezz_gs's Avatar

Joined: Nov 2004
Location: Sydney Skunkworks
Oddometer: 3,710
Quote:
Originally Posted by HogWild
Looking at the two rigs above, it looks like they both have quite limited suspension travel. That's probably fine for a street rig, but for dual sport or off-road, you would definitely want a system that gives more travel than those. The other negatives are the un-sprung and overall weight. A leading link setup looks much better in those respects. Again, for anything going where there are bumps, weight is definitely bad. The one thing that I like about the center hub system is that the tire stays level while turning. That's definitely nice if you have a wide and flat profile tire up front.
As I am looking more towards the all road front end, the simpler LL's is the lightest way to go when considering travel.

Enjoying the thought process of Centre Hub steering too, and it would look a bit out of place on an old Airhead
__________________
Airhead Tragic
I'm not a complete idiot -- Some parts are missing
XR460/4 - http://www.advrider.com/forums/showthread.php?t=497905


Pezz_gs is offline   Reply With Quote
Old 08-20-2008, 07:23 AM   #119
larryboy
Leisurely Liar

larryboy's Avatar

Joined: Jan 2005
Location: On a set of 50,000 mile tires.
Oddometer: 13,852
Quote:
Originally Posted by HogWild
Looking at the two rigs above, it looks like they both have quite limited suspension travel. That's probably fine for a street rig, but for dual sport or off-road, you would definitely want a system that gives more travel than those. The other negatives are the un-sprung and overall weight. A leading link setup looks much better in those respects. Again, for anything going where there are bumps, weight is definitely bad. The one thing that I like about the center hub system is that the tire stays level while turning. That's definitely nice if you have a wide and flat profile tire up front.

It's a trade off type of thing it seems. I could go with a hub center front, shock with 4 inches of travel or so and a big bouncy tire I can air down. Or LL with 8 inches of travel and a lower profile tire for better street manners. I'll probably go with a LL for a little better dirt performance on this project.

Thanks to you and Bad Cat for the info, very helpful.
__________________
Be sure the safest rule is that we should not dare to live in any scene in which we dare not die. ~Lewis Carroll~
larryboy is offline   Reply With Quote
Old 08-20-2008, 07:31 AM   #120
kliff
Retired Ole Phart

kliff's Avatar

Joined: May 2007
Location: Grovetown, GA
Oddometer: 1,119
Quote:
Originally Posted by Ural Australia
Unfortunately a vengeful-ex put paid to that. She thought photos made great fire starters.
I know that feeling.....SUX, too!
__________________
kliff

NASRA / MAXX Racing
http://nasra.proboards.com/index.cgi
Scooter Rebels
http://scooterrebels.proboards.com/index.cgi
49cc Scoot
http://49ccscoot.com/
Peace, Eagle, as long as it's a BASHAN, it's cool with me!
kliff is offline   Reply With Quote
