Old 01-27-2009, 11:25 PM   #166
cyclop
"Sideways!"

cyclop's Avatar

Joined: Aug 2004
Location: N1 21.392 E103 57.569
Oddometer: 190
Cyclop's Homemade Tankguard

Hi RoyalMcNab,

The tank pieces that you had enquired are homemade. Could not find anything on the market so I decided to make them myself.

I was nudged by a car a couple of months back. The impact was enough to throw me off the bike. The bike slid a couple of meters and it sustained damages to the right cylinder cover, the right side of the tank and also the final drive housing. The damages to the tank and final drive housing were largely cosmetic in nature so I decided to do the repairs myself.

Some scrapes to the tank. Plastic epoxy could not hold, peels right off.


Decided on the shape of the guard, made a cast and build it up with plastic steel epoxy, reinforced with steel mash. Repeat for left guard.




More epoxy and shaping done. Have to make the ends as pointy as possible as the final CF laminates will round them off.



Handed them to a shop who specialized in CF wrapping. Added 6 layers CF and Kevlar laminates. Could not tell from looking at the finished product, have to take their word for it..


Stucked them to the tank with black silicon adhesive, the type used for securing automotive windscreen.




Will they work ? Don't wish to find out...
__________________
Roadsigns are arbitrary. You're only going against traffic when there's traffic - 21/04/05
cyclop is offline   Reply With Quote
Old 01-27-2009, 11:28 PM   #167
cyclop
"Sideways!"

cyclop's Avatar

Joined: Aug 2004
Location: N1 21.392 E103 57.569
Oddometer: 190
GSMarc,

Thanks for the info

Think my Mrs can breath again now...

Quote:
Originally Posted by GSMarc
to Cyclop

I asked the same yesterday...
seems that the engines are not the same (length etc)

Impossible to swap MM engine with HP2S engine

Perhaps a MM in 2010 with this new engine ??
__________________
Roadsigns are arbitrary. You're only going against traffic when there's traffic - 21/04/05
cyclop is offline   Reply With Quote
Old 01-28-2009, 01:38 AM   #168
Joe Bar OP
Middle England

Joe Bar's Avatar

Joined: Nov 2005
Oddometer: 1,358
Quote:
Originally Posted by cyclop
Hi RoyalMcNab,

The tank pieces that you had enquired are homemade. Could not find anything on the market so I decided to make them myself.
Nice job Cyclop
__________________
"Style is not a decoration added to a functional structure, it's a work of art."
Joe Bar is offline   Reply With Quote
Old 01-28-2009, 10:42 AM   #169
Giraffe
Mocker

Giraffe's Avatar

Joined: Jun 2004
Location: Evergreen, CO
Oddometer: 214
To: pepot

I would like help with getting that carbon-fiber front fairing/windscreen you have!
__________________
(303) 343-6943
Giraffe is offline   Reply With Quote
Old 01-28-2009, 01:11 PM   #170
fixinbones
Tarmac Adventurer

fixinbones's Avatar

Joined: Feb 2005
Location: New York
Oddometer: 2,012
Quote:
Originally Posted by GSMarc
from the ktm fishe it looks like those footpegs bolt right to the frame but on your bike you have a tube type clamp. Can you fill us in on what needs to be purchased to make this work.
__________________
'13 Ducati Diavel AMG #163
'09 KTM 65XC (son's ride)

Gone: '10 Ducati Multistrada 1200S, '11 BMW R1200GS, '10 BMW S1000RR, '08 BMW HP2 Megamoto, '07 KTM 950SMR, '05 BMW R1200GS, '94 BMW R1100R

fixinbones screwed with this post 01-28-2009 at 01:20 PM
fixinbones is offline   Reply With Quote
Old 01-29-2009, 01:41 AM   #171
GSMarc
Studly Adventurer

GSMarc's Avatar

Joined: Dec 2004
Oddometer: 958
Hi Fixin,

you will found all infos on Markus website I wrote on the post :



http://www.gs-equipment.de/page5.php

http://www.gs-equipment.de/page6.php


http://www.gs-equipment.de/

He did the adapters to fix eveything.
__________________
GSMarc from BELGIUM
2014 KTM EXC450 6Days
2008 HP2/MM ABS
2005 HP2E
2005 HP2E SM Prototype
GSMarc is offline   Reply With Quote
Old 01-29-2009, 08:32 AM   #172
jonasf
Ich mag Sauerkraut

jonasf's Avatar

Joined: Sep 2002
Location: Corvallis OR
Oddometer: 240
filling underseat tank

hello
do you have to take the seat off to fill up?
do you have to stop riding when you pump the gas from the underseat tank to the main tank?
what is the total mil with both tanks?

thanks
__________________
Jonas
---------------------------------------------------

Nur tote Fische schwimmen mit dem Strom
jonasf is offline   Reply With Quote
Old 01-29-2009, 01:40 PM   #173
fixinbones
Tarmac Adventurer

fixinbones's Avatar

Joined: Feb 2005
Location: New York
Oddometer: 2,012
Quote:
Originally Posted by cyclop
I have just added the provision to mount the ADV top box using the bracket (P/N : 71607696292) from the 800GS and lower part of the Touratech rack.

Touratech rack and with top plate removed:


800GS bracket mated to the Touratech bracket. Need to drill a couple of holes for the M8 bolts (supplied with the GS bracket) and the bolts need to be shortened.


Done :



Added some cushion (tap rubber washer sandwiched between 2 metal washers) between the GS and Touratech brackets at the 4 bolting points:


Cyclop,
How sturdy is this setup? Can the rack be used as a passenger grab rail when the bag is off, or how about a back rest when its on?
__________________
'13 Ducati Diavel AMG #163
'09 KTM 65XC (son's ride)

Gone: '10 Ducati Multistrada 1200S, '11 BMW R1200GS, '10 BMW S1000RR, '08 BMW HP2 Megamoto, '07 KTM 950SMR, '05 BMW R1200GS, '94 BMW R1100R
fixinbones is offline   Reply With Quote
Old 01-29-2009, 05:24 PM   #174
cyclop
"Sideways!"

cyclop's Avatar

Joined: Aug 2004
Location: N1 21.392 E103 57.569
Oddometer: 190

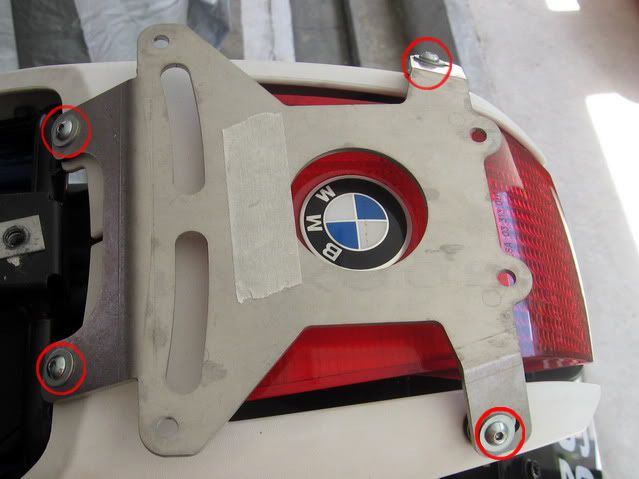

The Touratech bottom plate is mounted to the rear subframe at 4 points. The box feels planted.

Have not tried leaning on it as I only ride one-up. As a grab rail, I do not think that it will be comfortable as it is narrow, hence requiring the passenger to reach back and squeeze his/her arms close.

Quote:
Originally Posted by fixinbones
Cyclop,
How sturdy is this setup? Can the rack be used as a passenger grab rail when the bag is off, or how about a back rest when its on?
__________________
Roadsigns are arbitrary. You're only going against traffic when there's traffic - 21/04/05
cyclop is offline   Reply With Quote
Old 01-30-2009, 11:34 PM   #175
GSMarc
Studly Adventurer

GSMarc's Avatar

Joined: Dec 2004
Oddometer: 958
Quote:
Originally Posted by jonasf
hello
do you have to take the seat off to fill up?
do you have to stop riding when you pump the gas from the underseat tank to the main tank?
what is the total mil with both tanks?
thanks
1) Yes, take off the seat ;
2) No stop during pumping ;
3) not yet tested. Should be 335 km (208 miles)

@Pepot
Can you tell me which color you used to paint the support of Xenon lamps ?

Does somebody knows a similar (White, Grey, Indigo Blue)color which can be found in spray ?

Thank in advance,
__________________
GSMarc from BELGIUM
2014 KTM EXC450 6Days
2008 HP2/MM ABS
2005 HP2E
2005 HP2E SM Prototype

GSMarc screwed with this post 01-31-2009 at 12:01 AM
GSMarc is offline   Reply With Quote
Old 02-08-2009, 03:00 PM   #176
Dee Tee
Tarmac Terrorist

Joined: Sep 2007
Location: Tamworth,Staffs (Cheap Council Tax) England
Oddometer: 43
Hey,Guys,add me to the List !!






Heading out to Marshalling Duties at the Isle Of Man TT


Arty shot of my Arai Tour-X with custom Paint Job


Since the Pix were taken,i've added the HP2 Carbon Rocker covers and the BMW Carbon Generator Cover.
__________________
TOO SOFT TO CAMP,TOO POOR TO TOUR.
Dee Tee is offline   Reply With Quote
Old 02-08-2009, 03:55 PM   #177
Joe Bar OP
Middle England

Joe Bar's Avatar

Joined: Nov 2005
Oddometer: 1,358
Quote:
Originally Posted by Dee Tee
Hey,Guys,add me to the List !!
Dave - check page 1 - you're already there - 5th from top
__________________
"Style is not a decoration added to a functional structure, it's a work of art."
Joe Bar is offline   Reply With Quote
Old 02-08-2009, 05:43 PM   #178
Dee Tee
Tarmac Terrorist

Joined: Sep 2007
Location: Tamworth,Staffs (Cheap Council Tax) England
Oddometer: 43
Quote:
Originally Posted by Joe Bar
Dave - check page 1 - you're already there - 5th from top
I did wonder about that but there is a UKGSer using Dave T as his ID (thats why i use my initials )
__________________
TOO SOFT TO CAMP,TOO POOR TO TOUR.
Dee Tee is offline   Reply With Quote
Old 02-09-2009, 02:08 AM   #179
Joe Bar OP
Middle England

Joe Bar's Avatar

Joined: Nov 2005
Oddometer: 1,358
Quote:
Originally Posted by Dee Tee
I did wonder about that but there is a UKGSer using Dave T as his ID (thats why i use my initials )
Strange that Dave, I've never noticed that you used Dee Tee on here or UKGSer, always saw it as Dave T

I'll edit the first page now
__________________
"Style is not a decoration added to a functional structure, it's a work of art."
Joe Bar is offline   Reply With Quote
Old 02-10-2009, 10:30 AM   #180
Giraffe
Mocker

Giraffe's Avatar

Joined: Jun 2004
Location: Evergreen, CO
Oddometer: 214
Quote:
Originally Posted by Joe Bar
Only source that I know of -

http://www.serrispecial.com/ricambi.php
I've e-mailed info@bmwspecial.com and have not had a response.

I've attempted to contact Pepot for any kind of help, input, feedback and have not had a response. Has anyone bought or had any interest in obtaining one of these "Cuplino"s (top fairings/carbon windscreens) ???

My phone number is in my signature if anyone can put me in touch with the right person.
__________________
(303) 343-6943
Giraffe is offline   Reply With Quote
