Wicked Making of the 10HP Diesel Prime Mover

Hey all


Thought I might show this short build of a Diesel powered motorcycle

The Diesels a 418cc 10HP lump. A clone of a Yanmar made by our Chinese friends.

I've been told by the importer these are the better clones using quality injector, seals and bearings (maybe SKF or FAG?).
Time will tell.

I used an Enfield as the donor bike. They aint that cheap these days but the parts are and widely availability. Thanks Indians probs won't last forever though.

As the whole setup originally has the petrol motor as a stressed member, we went with the original design and made the Diesel as a stressed member too





Had to purchase a Renold 25 tooth duplex sprocket to go on to the output shaft of the Diesel. Its in the BRH corner

Local machinist got it bored out 1" with a 1/4 key way to fit.

A hole was tapped, threaded to fit a grub screw to grab onto the key steel.



First off had to make a backing plate on the gearbox using 5mm steel, 400 by 100 for $7, what a rip off.

2 holes were drilled at opposite sides on the gearbox plate, to make 4.

At the back of the motor is the governor linkage (throttle), it's the beta version, I made an improved one later.

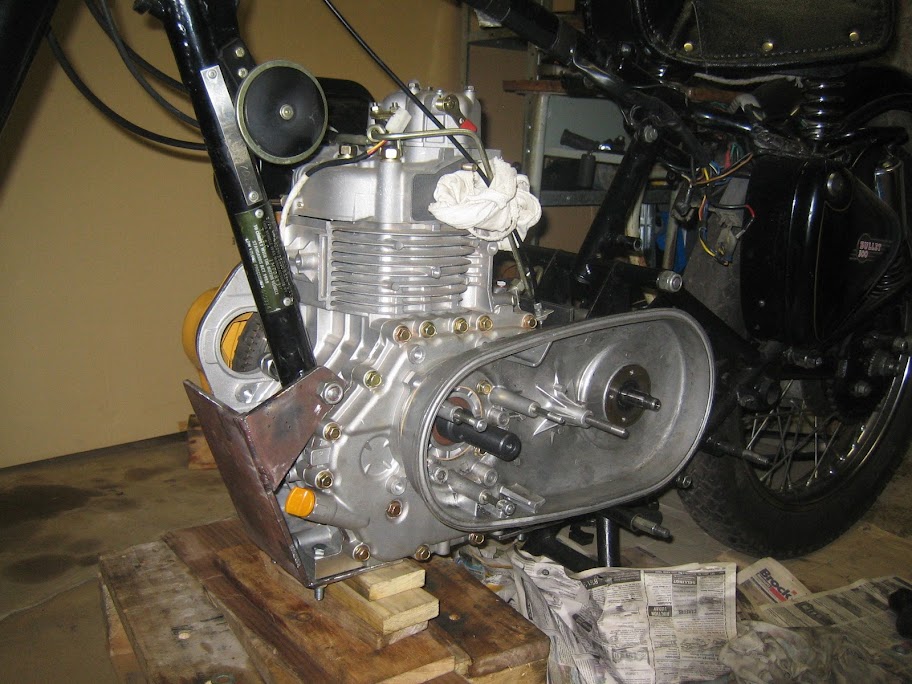

Leveled the rear bracket, placed the motor on it at proper height with the front bracket. Welded on triangles to bolt to the front down tube.

Front bracket made from 6mm steel with 6mm triangles. $10 for 1000 by 200 wide 6mm thick, baargain!!





My bro did all the important stuff; the welding, I did all the cutting, grinding, made throttle and engine kill cables and other bits and bobs.








Had to measure out accurately the 3 holes to drill in the inner primary to bolt onto the motor.

The Diesels output shaft is the same distance from the gearbox shaft as the previous petrols.

Didn't have to alter primary chain at all.

Just eyeball it with the clutch basket sprocket bolt the grub down and your good to go.








That's me ugly mug in the Jackie Howe







All fitted.

Painted the flywheel cover black

Later cut out the all important head steady to get welded.

Can see in the pics below.



Pre units are great






And out in the country

It should hold up well, currently 700kms on it.

Dan
