Old 10-21-2010, 08:49 AM   #811
John Ashman
Adventurer Wannabe

Joined: Aug 2008
Location: Viejo Mexico
Oddometer: 1,607
31.9"-32.6" seat height on one,
33.25"-34" on the other.

Not bad. I might actually be able to wing an XC without too much stress. Worse case, it forces me to be a better rider. Depends on the seat shape and CoG. If not, the 800 would be fine. And it wouldn't suck to have both. Cool.
John Ashman is online now   Reply With Quote
Old 10-21-2010, 08:51 AM   #812
John Ashman
Adventurer Wannabe

Joined: Aug 2008
Location: Viejo Mexico
Oddometer: 1,607
I'll have to say this for Triumph. At least they seem to recognize that people demand more info and they're letting it seep out, rather than making people wait in a vacuum. At least it keeps the tribes from getting restless. It seems to me they're watching and listening to what people are saying.
John Ashman is online now   Reply With Quote
Old 10-21-2010, 09:26 AM   #813
thephantom
Two-wheeled wanderer

thephantom's Avatar

Joined: Jul 2010
Location: Scotland
Oddometer: 225
Has anyone noticed the XC version seems to have an additional 2 cables/hoses that appear to terminate one the front forks, in addition to the brake hoses that are also visible on the road version...

Any ideas...?

thephantom is offline   Reply With Quote
Old 10-21-2010, 09:36 AM   #814
Tijuana_Taxi
Gnarly Adventurer

Joined: Jun 2009
Location: Boise,Idaho
Oddometer: 326
The street version has one brake line down to the left caliper then crosses over to the right caliper. The XC looks like one down to fork then T's off to both calipers and then also a crossover from caliper to caliper.
Tijuana_Taxi is offline   Reply With Quote
Old 10-21-2010, 09:40 AM   #815
WormShanks
b00b

WormShanks's Avatar

Joined: May 2010
Location: NW
Oddometer: 347
Quote:
Originally Posted by thephantom
Has anyone noticed the XC version seems to have an additional 2 cables/hoses that appear to terminate one the front forks, in addition to the brake hoses that are also visible on the road version...

Any ideas...?
Looks like the brake lines to me. Could be XC vs. non-XC or ABS vs. non-ABS. In one case the hydraulic line junction is on the fender instead of the caliper.
__________________

Ridden: AF AM AW AU AT AZ BS BH BD BB BY BW BV BR IO BN BG BF BI KH CM CA CZ DK SV GQ ER EE ET FK GI GR GP VA HN HK HU IS IN ID IR IQ KI KP KG LA LV LB LU NR NP NL AN NC NZ NI NE NO OM PK PR QA RE RO RU RW LC VC WS SM ST TM TC TV UG UA AE GB US UY UZ VU YE
WormShanks is offline   Reply With Quote
Old 10-21-2010, 09:40 AM   #816
beep
Guest

Oddometer: n/a
Note the standard tyres on the XC are completely different from the ones in the photo shoot.
  Reply With Quote
Old 10-21-2010, 09:55 AM   #817
thephantom
Two-wheeled wanderer

thephantom's Avatar

Joined: Jul 2010
Location: Scotland
Oddometer: 225
Quote:
Originally Posted by Tijuana_Taxi
The street version has one brake line down to the left caliper then crosses over to the right caliper. The XC looks like one down to fork then T's off to both calipers and then also a crossover from caliper to caliper.
I thought that, but it appears the XC follows the street version - it also has one line that goes to one caliper then crosses over to the other. But there still those two additional cables / lines that look like they terminate at the fork itself. They also look like hydraulic lines, rather than cables based on the connectors...

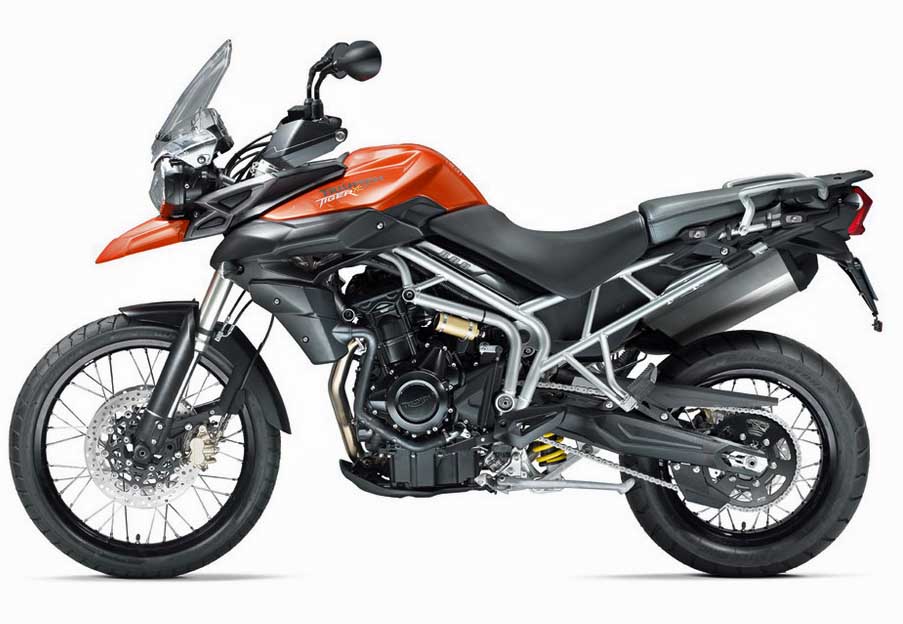

This photo makes it clearer regarding the brake lines going to the caliper:



Is it possible they have electronically adjustable suspension on the XC?
thephantom is offline   Reply With Quote
Old 10-21-2010, 10:02 AM   #818
Gravehunter
Studly Adventurer

Gravehunter's Avatar

Joined: Feb 2008
Location: Clarinda, Iowa, USA
Oddometer: 753
Brake lines look to be a normal setup. The 2 lines that come down to the fork look to be separate to me.
I'm thinking adjustable suspension too!!
__________________
2005 BMW 1200GS
Gravehunter is offline   Reply With Quote
Old 10-21-2010, 10:11 AM   #819
thephantom
Two-wheeled wanderer

thephantom's Avatar

Joined: Jul 2010
Location: Scotland
Oddometer: 225
Quote:
Originally Posted by Gravehunter
Brake lines look to be a normal setup. The 2 lines that come down to the fork look to be separate to me.
I'm thinking adjustable suspension too!!
There is also the remote reservoir for the rear shock but with no obvious remote preload adjuster, something I would expect on a bike like this.

If this thing has electronically adjustable suspension and is selling for 7.5k, they won't be able to make them fast enough
thephantom is offline   Reply With Quote
Old 10-21-2010, 10:13 AM   #820
Gravehunter
Studly Adventurer

Gravehunter's Avatar

Joined: Feb 2008
Location: Clarinda, Iowa, USA
Oddometer: 753
I can't think of another reason for those lines being there. mmmmm...
__________________
2005 BMW 1200GS
Gravehunter is offline   Reply With Quote
Old 10-21-2010, 10:42 AM   #821
markbvt
Beastly Adventurer

Joined: Sep 2007
Location: Georgia, Vermont (that's one town, not two states)
Oddometer: 2,674
I think you guys are overthinking it.

What I see is a brake line coming down along the fork leg and going into a fitting attached to the fender, out of which comes another line that loops up towards the radiator and down on the other side. And from the right caliper another line splits off that hugs the fender and runs to the left-side caliper.

Why Triumph routed the line like this is beyond me, but it seems pretty clear that nothing's coming from that fender-mounted fitting to connect to the fork. It couldn't be directly connected to the fork leg at that point because the fender will move up and down in relation to the fork leg there.

--mark
__________________
'11 Triumph Tiger 800 XC / '03 Honda XR650L / '01 Triumph Bonneville cafe

My ride reports: Missile silos, Labrador, twisties, and more

Bennington Triumph Bash, May 30-June 1, 2014
markbvt is offline   Reply With Quote
Old 10-21-2010, 10:52 AM   #822
Gravehunter
Studly Adventurer

Gravehunter's Avatar

Joined: Feb 2008
Location: Clarinda, Iowa, USA
Oddometer: 753
Quote:
Originally Posted by markbvt
I think you guys are overthinking it.

What I see is a brake line coming down along the fork leg and going into a fitting attached to the fender, out of which comes another line that loops up towards the radiator and down on the other side. And from the right caliper another line splits off that hugs the fender and runs to the left-side caliper.

Why Triumph routed the line like this is beyond me, but it seems pretty clear that nothing's coming from that fender-mounted fitting to connect to the fork. It couldn't be directly connected to the fork leg at that point because the fender will move up and down in relation to the fork leg there.

--mark
mmm... I see what your saying and i think your right. Weird way to run them. oh well, i don't really care. Its already so close to what i want i know i'll get one regardless!
__________________
2005 BMW 1200GS
Gravehunter is offline   Reply With Quote
Old 10-21-2010, 11:02 AM   #823
williedikker
You bet he will... TWICE

Joined: Aug 2006
Location: PA, USA, EARTH
Oddometer: 68
Yeah, look at the front angled shots of the bike and you can see 2 looped brake lines going over the front fender. Not sure why they didn't run them like on the other bike. Just adds a splitter and gives a lot of slack in the one brake line.

__________________
2002 BMW R1150RT
2001 KLR650
williedikker is offline   Reply With Quote
Old 10-21-2010, 11:20 AM   #824
eakins
Butler Maps

eakins's Avatar

Joined: May 2002
Location: Fort Collins, Colorado
Oddometer: 17,991
that has to be the worst brake line fitting i've ever seen. that is overdone even more than german standards. what create 2 loop backs? that just creates more fluid work and potential brake loss. the common thing to do would be a T and even better 2 braided line from the res.

i must say triumph has some head scratchers on this bike.
i know this has been discussed already.
-why is that front fender sooo close to the tire on this version. it goes against everything the bike is designed for. if you look at the pic of the bike w/ the knobbies the clear is unreal tight??? i can see a fender lift kit (w/ rider brackets) being one of the first mods to be done by the aftermarket. maybe that can be bundled w/ better brake lines.
-the frame tubing for the rear pegs. triumph expects this bike to be riden in the dirt yet attaches the rear pegs to frame to to rear subframe to the front frame??? a hard dump and you could be looking at a damage rear subframe/complete frame? they should of atleast make the rear peg brackets removable. if you use hard luggage the point is moot but not everyone will. who will be the first person to tweak this area? maybe people will cut it off to be safe as they don't ride w/ passengers anyway.

i think it's obvious that the designers did not consult hardcore offroad riders on what is needed or short commings they see before they went into production. in this sense triumph screwed up.
__________________
Butler Maps - motorcycle maps for riders by riders -
Alaska
AZ map COBDR AZBDR IDBDR South East map
http://www.advrider.com/forums/showthread.php?t=598717
Butler Maps website:
http://www.butlermaps.com

eakins screwed with this post 10-21-2010 at 11:32 AM
eakins is offline   Reply With Quote
Old 10-21-2010, 11:27 AM   #825
RodT
Gnarly Adventurer

Joined: Sep 2008
Location: Westwood, CA.
Oddometer: 338
Centerstand ?

Anybody see a centerstand for this xc? I would hope they offer one. Rod
__________________
Any fool can criticize,condem and complain and most fools do. Ben Franklin
RodT is offline   Reply With Quote
