Old 07-30-2012, 04:52 AM   #1276
Olirider
Gnarly Adventurer

Olirider's Avatar

Joined: May 2008
Location: The country of stinky cheeses
Oddometer: 442
Mysterious old engine

Last week, when touring the Massif Central area in France, I stopped in a very small village to have a drink and had the surprise to find this fine piece of engine art.
(The left one. The right one is also mechanical art but not very mysterious !)

At first I thought it was 2 enormous twin cylinders engines.
But when looking closer,

I understood that it was a petrol engine coupled to a twin cylinders air compressor.
It will not move again easily because the wheels are encrusted in the tar.


What do you think ? Is this a twin cylinders or a 4 cylinders engine ?
I suppose this is a 4 cylinders when looking at the low part of the 2 cylinders blocks.
I guess we see here the magneto and the water pump.
How big can the displacement be ?

Looking at the cylinders heads we see 4 spark plugs. It must really have 4 cylinders.
On the spark plugs, we can read "Champion Etats Unis d'Amérique".

This must be the clutch between the engine and the compressor.


Do you imagine starting such a big engine by hand crank ?
I googled Ingersoll-Rand and it is indeed a US brand well known for air compressors




The carburetor which I find surprisingly small.
It seems there are 4 exhausts but only 2 inductions ?

The air compressor which shares the same liquid cooling as the engine.

The manometer : up to 12 bar (174 psi)

The pipe from the compressor to the air tank.

I hope these pictures will interest some of you.

Would anyone be able to tell how old this engine may be ?
Olirider is offline   Reply With Quote
Old 07-30-2012, 10:08 AM   #1277
Tim McKittrick
Beastly Adventurer

Joined: Dec 2003
Location: Wasilla Alaska
Oddometer: 1,653
That looks to be about a 1928-9 Type 20 IR compressor.... the engine remains a mystery, but it wasn't uncommon to make 4 and 6 cylinder engines with paired two cylinder banks at that time.
Tim McKittrick is offline   Reply With Quote
Old 07-30-2012, 10:41 AM   #1278
pierce
Aven'Tourer

pierce's Avatar

Joined: Jan 2003
Location: S'Cruz
Oddometer: 10,006
and its probably a flathead, so the one intake port going to two cylinders isn't a surprise either. and yes, those old engines used tiny carbs, they weren't anywhere near the HP per displacement of something more modern. that thing probably turns at some lazy 3 digit RPM so there's just not that many CFM of air going in. its water cooled, so the big cylinder things you see are the jackets, the cylinder barrels inside are probably quite a bit smaller. my guess is, the water pump is that turbine like thing left of the magneto.


edit: that one is in better shape than either of these...

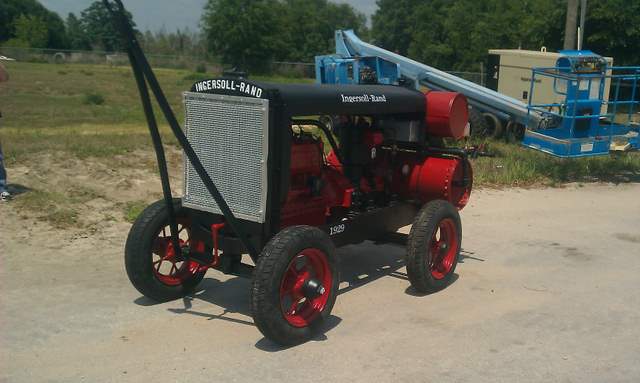

that first one was restored to this!



found something saying that the type 20 was a 100 CFM compressor...
__________________
Experience is what you get when you don't get what you want.

pierce screwed with this post 07-30-2012 at 10:48 AM
pierce is offline   Reply With Quote
Old 07-30-2012, 01:37 PM   #1279
Olirider
Gnarly Adventurer

Olirider's Avatar

Joined: May 2008
Location: The country of stinky cheeses
Oddometer: 442
Quote:
Originally Posted by pierce View Post
...
found something saying that the type 20 was a 100 CFM compressor...

Thanks for the follow up information. By the way, I had to use wikipedia to find out what CFM could be.
Cubic Feet per Minute instead of the perfectly logical cubic meters per second... how strange are those Imperial units !

Googling with the name type 20, I found this confirmation :

http://www.constructionequipment.com...ingersoll-rand

Quote:
The Type 20 air compressor was built in 1927. It had an output of 100 cubic feet per minute. The compressor was mounted on a sprung chassis with wooden-spoked wheels and solid rubber tires, and distinct components of the engine and reciprocating compressor could clearly be seen. The lower tank was the air receiver; the upper tank held fuel.
Olirider is offline   Reply With Quote
Old 07-30-2012, 01:56 PM   #1280
pierce
Aven'Tourer

pierce's Avatar

Joined: Jan 2003
Location: S'Cruz
Oddometer: 10,006
Quote:
Originally Posted by Olirider View Post
Thanks for the follow up information. By the way, I had to use wikipedia to find out what CFM could be.
Cubic Feet per Minute instead of the perfectly logical cubic meters per second... how strange are those Imperial units !

0.05 m^3/s if you prefer. or 2.8 m^3/min. Since its an American compressor, it was rated in CFM...
__________________
Experience is what you get when you don't get what you want.
pierce is offline   Reply With Quote
Old 07-30-2012, 02:33 PM   #1281
Olirider
Gnarly Adventurer

Olirider's Avatar

Joined: May 2008
Location: The country of stinky cheeses
Oddometer: 442
Well, it was sold in France : the unit of the manometer was bar not PSI !
Olirider is offline   Reply With Quote
Old 07-30-2012, 07:22 PM   #1282
P B G
Beastly Adventurer

Joined: Mar 2008
Location: Greater Chicago
Oddometer: 9,995
Quote:
Originally Posted by Olirider View Post
Well, it was sold in France : the unit of the manometer was bar not PSI !
Or someone swapped the gauge.

That pipe fitting looks a bit cobbled.

Most of these in the US had a Waukesha engine, from Wisconsin.

That looks very similar to what was known as a Type A engine,

Tidbit of Waukesha engine history, their engines were the backup power generators in the World Trade Center - 3/6 of the engines survived 9/11 and provided power during evacuation... I found that interesting.
P B G is offline   Reply With Quote
Old 07-31-2012, 04:40 PM   #1283
Tripod
waldeinsamkeit

Tripod's Avatar

Joined: Jul 2005
Location: NE by N
Oddometer: 1,123

3 bikes in the garage with no desire....obsession this summer is finishing an 18 year old project...'62 f100 styleside...and to hear this 292 rumble! Simplicity squared. Yeah, I know that port side valve cover is backwards...twas the beers.
__________________
"We're all just dancers on the devils dance floor" - Flogging Molly

"If I wanted someone to clean me up I'de find myself a maid"-Dawes
Tripod is offline   Reply With Quote
Old 07-31-2012, 05:05 PM   #1284
12ARX
Beastly Adventurer

12ARX's Avatar

Joined: May 2009
Location: QLD, AUSTRALIA
Oddometer: 1,285
Unsure If 205???

Queen street BMW quad rotor...

__________________
Current Ride:
09 DR650SE
12ARX is offline   Reply With Quote
Old 07-31-2012, 05:30 PM   #1285
dagwood
Banned

dagwood's Avatar

Joined: Aug 2003
Location: Vancouver, Not! BC...
Oddometer: 35,427
:why?
dagwood is offline   Reply With Quote
Old 07-31-2012, 08:28 PM   #1286
pierce
Aven'Tourer

pierce's Avatar

Joined: Jan 2003
Location: S'Cruz
Oddometer: 10,006
Quote:
Originally Posted by Tripod View Post

3 bikes in the garage with no desire....obsession this summer is finishing an 18 year old project...'62 f100 styleside...and to hear this 292 rumble! Simplicity squared. Yeah, I know that port side valve cover is backwards...twas the beers.
my kid just got my 1965 F100 240 rat-truck running again. hah hah. just took dropping the carb in some carb cleaner for an hour, some fresh gas in the tank, and a bit of starter fluid. and a new battery.

its been parked for 6-7 years. this one is simplicity (plain). straight 6. single bbl carb.
__________________
Experience is what you get when you don't get what you want.
pierce is offline   Reply With Quote
Old 08-01-2012, 04:22 PM   #1287
California
Motorcyclist

California's Avatar

Joined: Nov 2007
Location: Lantana, TX...after 56 years in Carmel Valley, Ca.
Oddometer: 2,882
Quote:
Originally Posted by dagwood View Post
:why?

This is a question often asked. Whether you are talking about custom motorcycles, race cars, experimental aircraft, modern art, architecture or fashion, the answer is always the same, because you can!
__________________
California, aka Leslie V Leslie.

Two roads diverged in a wood, and I
took the one less traveled by,
and that has made all the difference
California is offline   Reply With Quote
Old 08-01-2012, 04:34 PM   #1288
Nailhead
Painting by numbers

Nailhead's Avatar

Joined: Apr 2003
Location: Glendo, WY- Pop. 230
Oddometer: 6,032
Quote:
Originally Posted by California View Post
...the answer is always the same, because you can!
The rebuttal is too frequently the same: just because you can doesn't necessarily mean you should.
__________________
-Chris


'7? Benelli 650S, '80 BMW R100 RS, '07 KTM 990 Adventure
Nailhead is offline   Reply With Quote
Old 08-01-2012, 06:23 PM   #1289
pierce
Aven'Tourer

pierce's Avatar

Joined: Jan 2003
Location: S'Cruz
Oddometer: 10,006
worse, huge turbocharger, with no intercooler and a tiny radiator?? so its mostly for show, and not for go.
__________________
Experience is what you get when you don't get what you want.
pierce is offline   Reply With Quote
Old 08-01-2012, 06:46 PM   #1290
12ARX
Beastly Adventurer

12ARX's Avatar

Joined: May 2009
Location: QLD, AUSTRALIA
Oddometer: 1,285
Quote:
Originally Posted by pierce View Post
worse, huge turbocharger, with no intercooler and a tiny radiator?? so its mostly for show, and not for go.
It is built for show.. To show off qsr's panel and paint skills, yeah it's over the top with the 24k gold but each to their own. But it is a drag car and runs on methanol so no intercooler needed and small rad is all that needed to keep it cool during staging and not excessive weight. (when or IF they do run it) google queen street BMW quad rotor and see what it was previously..
__________________
Current Ride:
09 DR650SE

12ARX screwed with this post 08-01-2012 at 06:54 PM
12ARX is offline   Reply With Quote
