Givi Key Codes (Magic Decoder Ring + Quiz)

Discussion in 'Equipment' started by kennybobby, Oct 28, 2011.

  1. riverflow

    riverflow Half Built

    Joined:
    Nov 16, 2013
    Oddometer:
    1,362
    Location:
    Corning, NY
    Old, but thought I'd bump with my info. From a Kappa topbox:
    Key # is 033
    Cut code would be 02110
    #41
  2. Alk1980

    Alk1980 n00b

    Joined:
    Nov 5, 2015
    Oddometer:
    1
    Location:
    North Hollywood, CA
    Not quite sure how to decode the 3 digit number on my lock? Can anyone tell me what the cuts/depths are for #305?

    Thanks!
    #42
  3. Torbido

    Torbido n00b

    Joined:
    Oct 22, 2008
    Oddometer:
    9
    Location:
    Ellijay, GA
    Not a fan of the fathead Givi/Kappa keys. My key # is 280. Any idea what aftermarket flat head blank that could be duplicated on?
    #43
  4. Safedoctor

    Safedoctor Working to Ride

    Joined:
    Nov 5, 2009
    Oddometer:
    10
    Location:
    San Jose, CA
    You can use a VW gas cap key Ilco X132 or Ilco X226 / HYD12
    #44
  5. Grimly

    Grimly Adventurer

    Joined:
    Jun 10, 2014
    Oddometer:
    10
    Just thought I'd add to this post - my old E45 box uses the same key as that.
    Today my small local key bar guy was able to cut me two spares, like so...
    [​IMG]

    It's a JMA blank, number HAF2D, and he lengthened the top/bottom shanks by about 5mm or so.
    Dirt cheap, easily available, saves me the cost and hassle of replacing the lockset.
    #45
    Kikstand and BlueLghtning like this.
  6. Pedringar

    Pedringar n00b

    Joined:
    Oct 1, 2016
    Oddometer:
    1
    I've just bought a bike with a kappa case with no key as the old owner lost it. The code qhich appears at the lock is 184. Can anyone help me on getting the cut code??? Thanks in advance!!!
    #46
  7. Magus

    Magus Never grew up... Supporter

    Joined:
    Jan 25, 2006
    Oddometer:
    539
    Location:
    Texas and Colorado
    Yea, I'll add to this thread if anyone is still watching it... I have a set of Givi side cases, each with '264' stamped on the lock. No key and bought used from dealership who are no help in tracking down PO. Any help appreciated.
    #47
  8. drumstyx

    drumstyx n00b

    Joined:
    Jun 24, 2014
    Oddometer:
    1
    Again, if anyone is still watching, I've got a pic of my 199 key here:

    https://goo.gl/photos/FmqPqrkcuJngpBjR7

    Just lost this key...hoping someone has a spare? Would a locksmith be able to make this key from the pic?
    #48
  9. Magus

    Magus Never grew up... Supporter

    Joined:
    Jan 25, 2006
    Oddometer:
    539
    Location:
    Texas and Colorado
    Yes, I finally found a locksmith who picked one of the side case locks (not easily) and managed to find the right blank to make a key. The fit is a little off but it does get them open. Also allows me the chance to replace all three barrels with a new set if I go that route. Good luck. It took me a couple of locksmiths before success.
    #49
  10. TengaiJohn

    TengaiJohn Long timer Supporter

    Joined:
    Apr 24, 2006
    Oddometer:
    3,610
    Location:
    Tappan, NY
    Help!! I broke my original and spare key for my Givi Topbox. Twisted Throttle does not have the tumbler and keys for this topbox. Any ideas?

    [​IMG]
    #50
  11. MrVvrroomm

    MrVvrroomm Been here awhile

    Joined:
    Aug 16, 2006
    Oddometer:
    800
    Location:
    Burnsville, MN USA
    oh so close, I have 148
    #51
  12. TengaiJohn

    TengaiJohn Long timer Supporter

    Joined:
    Apr 24, 2006
    Oddometer:
    3,610
    Location:
    Tappan, NY
    Hahaha, that is close!!!

    I think I'll just have to get a new case. Shame cause the one I have is in good condition.
    #52
  13. MrVvrroomm

    MrVvrroomm Been here awhile

    Joined:
    Aug 16, 2006
    Oddometer:
    800
    Location:
    Burnsville, MN USA
    Just drill it out and put in a new cylinder. No need to throw away a good case.
    #53
  14. TengaiJohn

    TengaiJohn Long timer Supporter

    Joined:
    Apr 24, 2006
    Oddometer:
    3,610
    Location:
    Tappan, NY
    I was able to get the cylinder out but I cannot find a replacement. Twisted Throttle informed me the case is no longer available and to try to get it from Italy.

    The cylinder is intact, just trying to get the key made but none of the locksmiths I've gone to can make the key without an original.
    #54
  15. draco_1967

    draco_1967 Spoon!

    Joined:
    Aug 16, 2011
    Oddometer:
    436
    Location:
    Salt Lake City
    #55
  16. gmk999

    gmk999 ____ as a Rotax

    Joined:
    May 2, 2011
    Oddometer:
    4,756
    Location:
    New England
    #56
  17. saranac

    saranac Adventurer

    Joined:
    Jul 12, 2014
    Oddometer:
    50
    Location:
    Puget Sound
    For the older Givi '4' digit keys, the Ilco 1527 key blank is a reasonably good fit. As Grimly noted about the AJM HAF 2D blank the ILCO 1527 is not a perfect fit but turns ok. Most lock smiths will have the ILCO blank.
    #57
  18. ncstatecamp

    ncstatecamp n00b

    Joined:
    Jul 10, 2016
    Oddometer:
    1

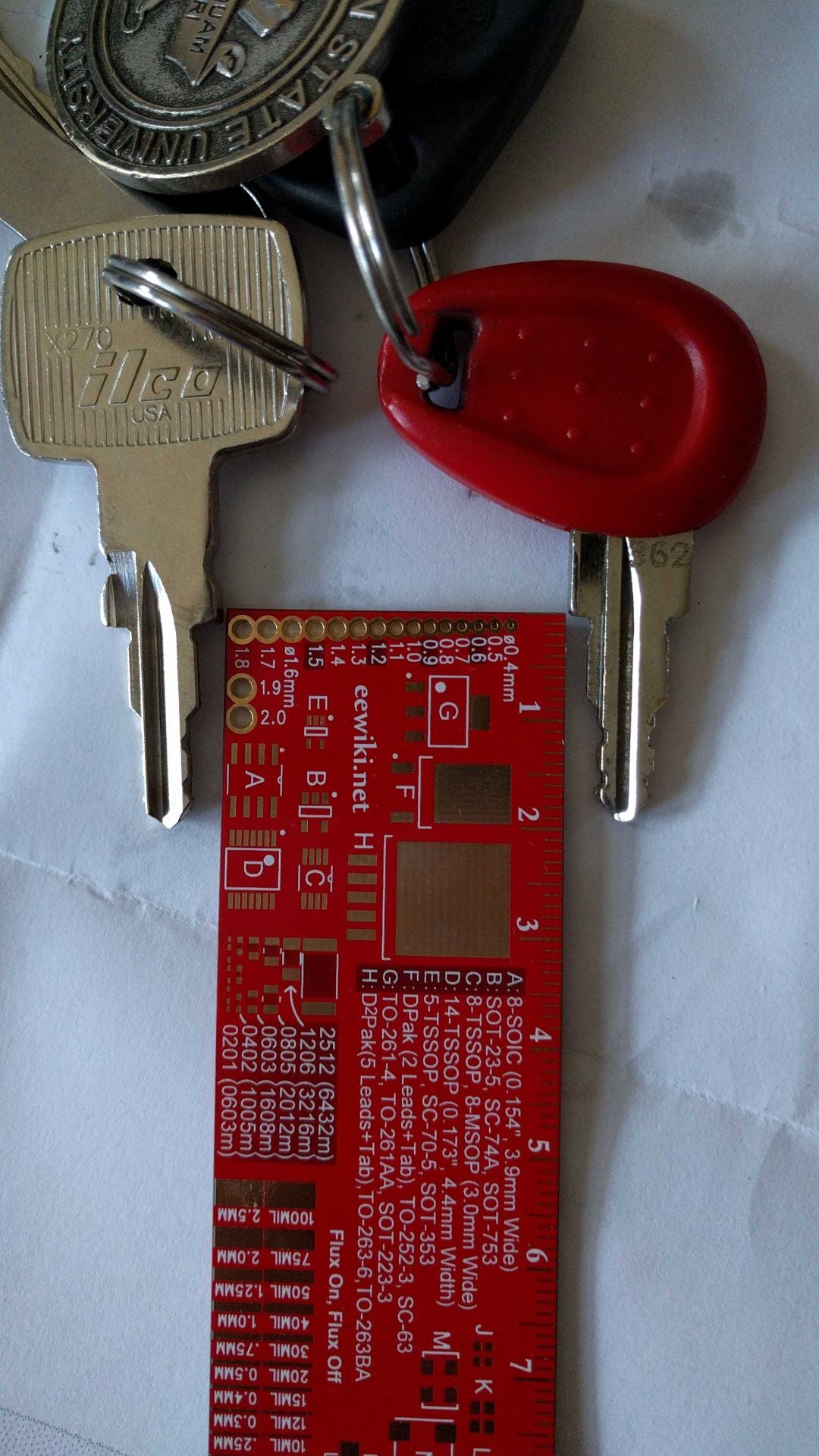

    I have a giving monokey maxia 52l top case, just got a spare key made, it's an ilico x270. Here's a pic of my 362[​IMG]

    Hope that helps

    Sent from my Nexus 6P using Tapatalk
    #58
  19. LLeditor

    LLeditor n00b

    Joined:
    May 29, 2017
    Oddometer:
    4
    #59
  20. LLeditor

    LLeditor n00b

    Joined:
    May 29, 2017
    Oddometer:
    4
    Do you have a usable Silca or JMA key blank for the 4-digit series such as code # 2110?
    #60
